Extended Data Fig. 1: Future surface temperature changes in the Northern Hemisphere (NH) linked to projected cumulative carbon uptake in the North Atlantic (NA).
From: Present-day North Atlantic salinity constrains future warming of the Northern Hemisphere

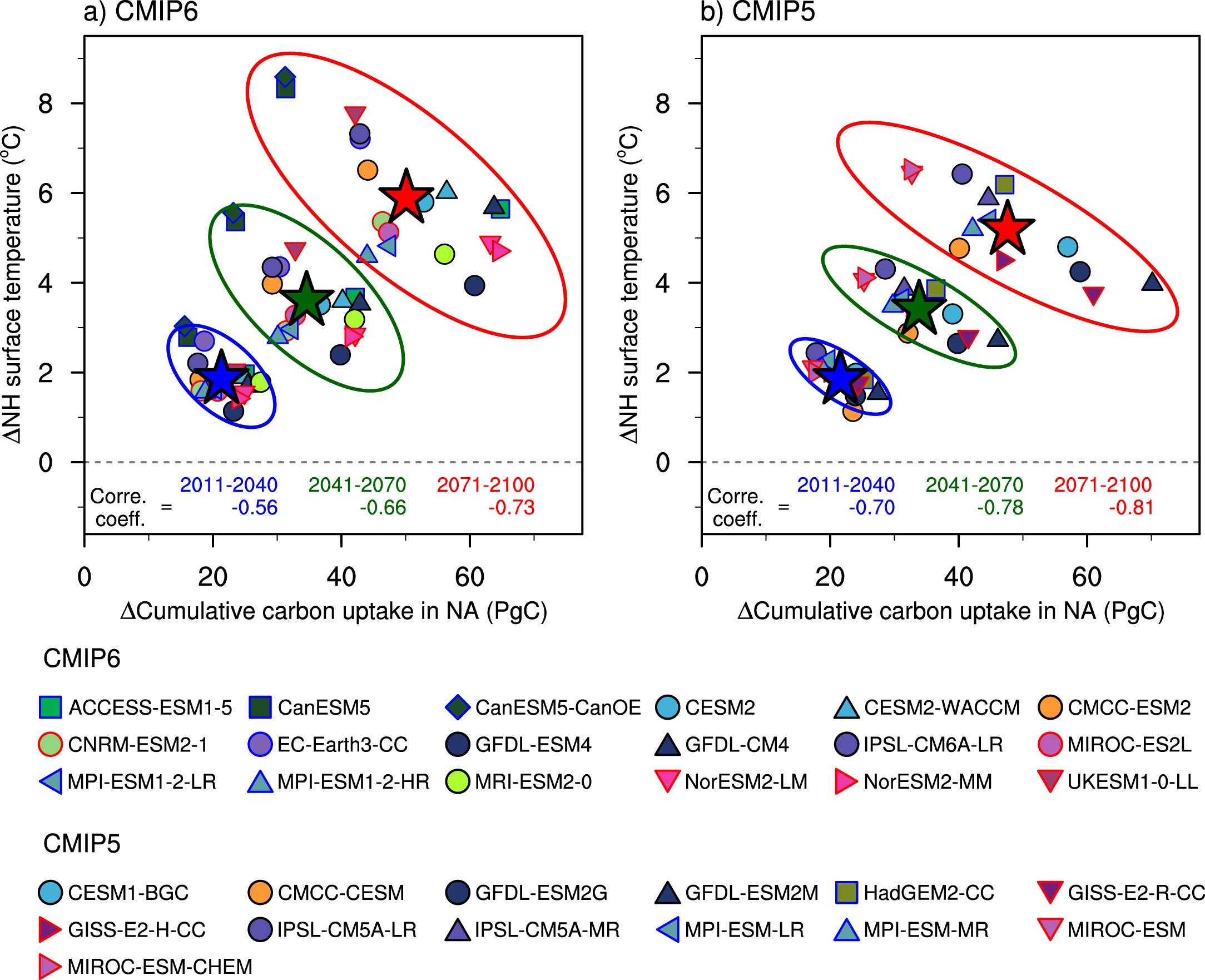

a, b, The inter-model relationship between projected changes in the NH surface temperature and carbon uptake in the NA from a, CMIP6 and b, CMIP5. Ellipses of different colours are calculated based on the multivariate normal distribution with 5–95% ranges of different 30-year periods (blue: 2011–2040, green: 2041–2070, red: 2071–2100). Stars indicate multi-model means of the ESMs.
