Extended Data Fig. 2: Annual damage assessments obtained from NeRD algorithm.
From: Damage development on Antarctic ice shelves sensitive to climate warming

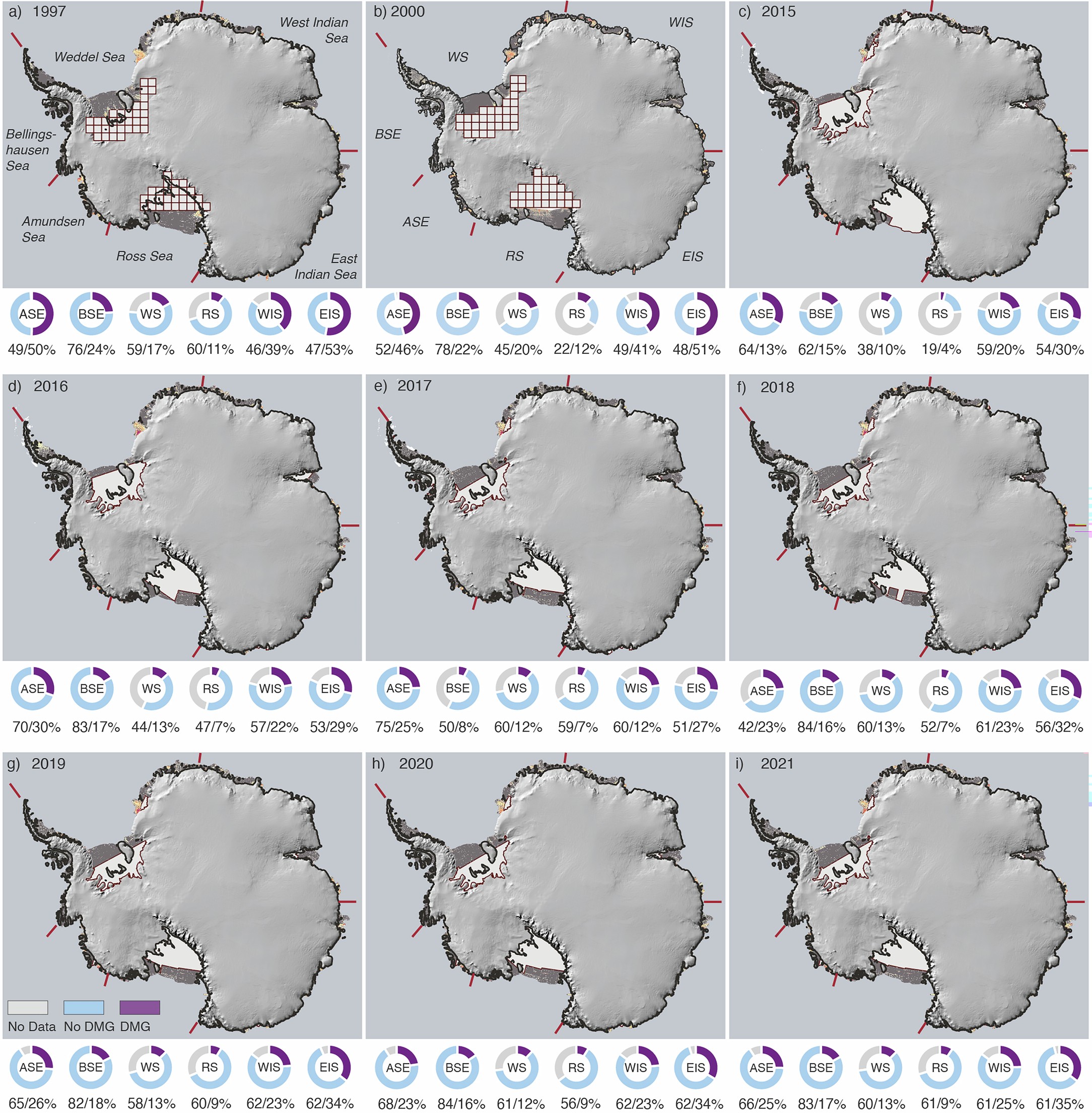

Panels a, b show damage maps for 1997, 2000 respectively and c-i show every year from 2015 to 2021. No-data areas are shown in grey; red tiles in the 1997 and 2000 RAMP mosaic were excluded to match Sentinel-1 Coverage (2015–2021). The pie charts show aggregated sector values by pixel count: no-data (light grey), no-damage (light blue, \(\hat{D}=0\)) and damaged (purple, \(\hat{D} > 0\)). Percentages are provided for the no-damage and damaged class. The total ice shelf area varies per year based on annual calving front positions. Grounded ice32 is visualized with Antarctic DEM33. Basemaps in a–i from ref. 33 under a Creative Commons licence CC BY. Grounding line shapefiles in a–i from ref. 32 under a Creative Commons licence CC BY.
