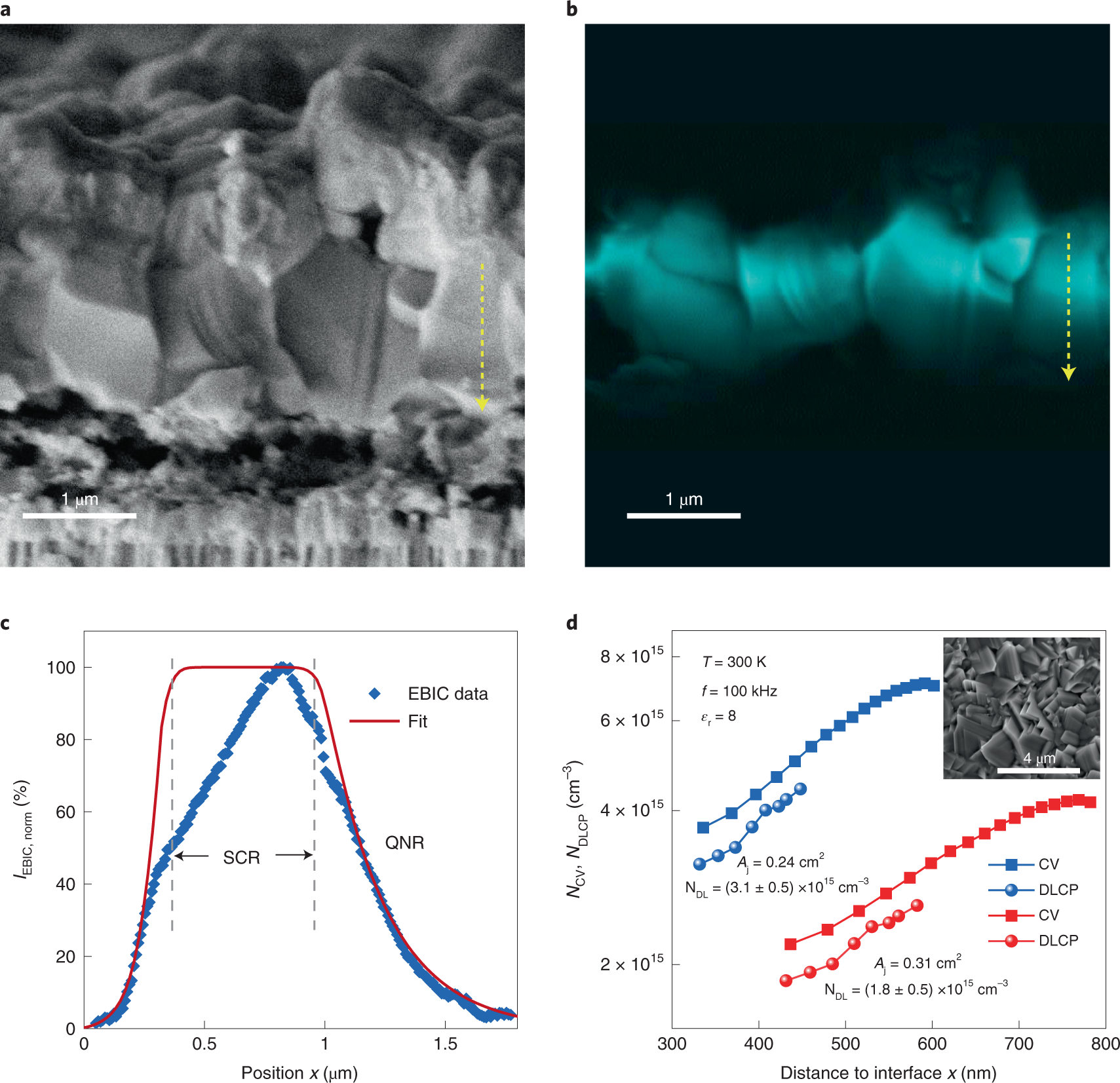

Fig. 4: Electron beam-induced current and carrier density analysis.
From: Unveiling microscopic carrier loss mechanisms in 12% efficient Cu2ZnSnSe4 solar cells
