Fig. 5: FE simulations for rolling depression of the prelithiated anode.
From: Roll-to-roll prelithiation of lithium-ion battery anodes by transfer printing

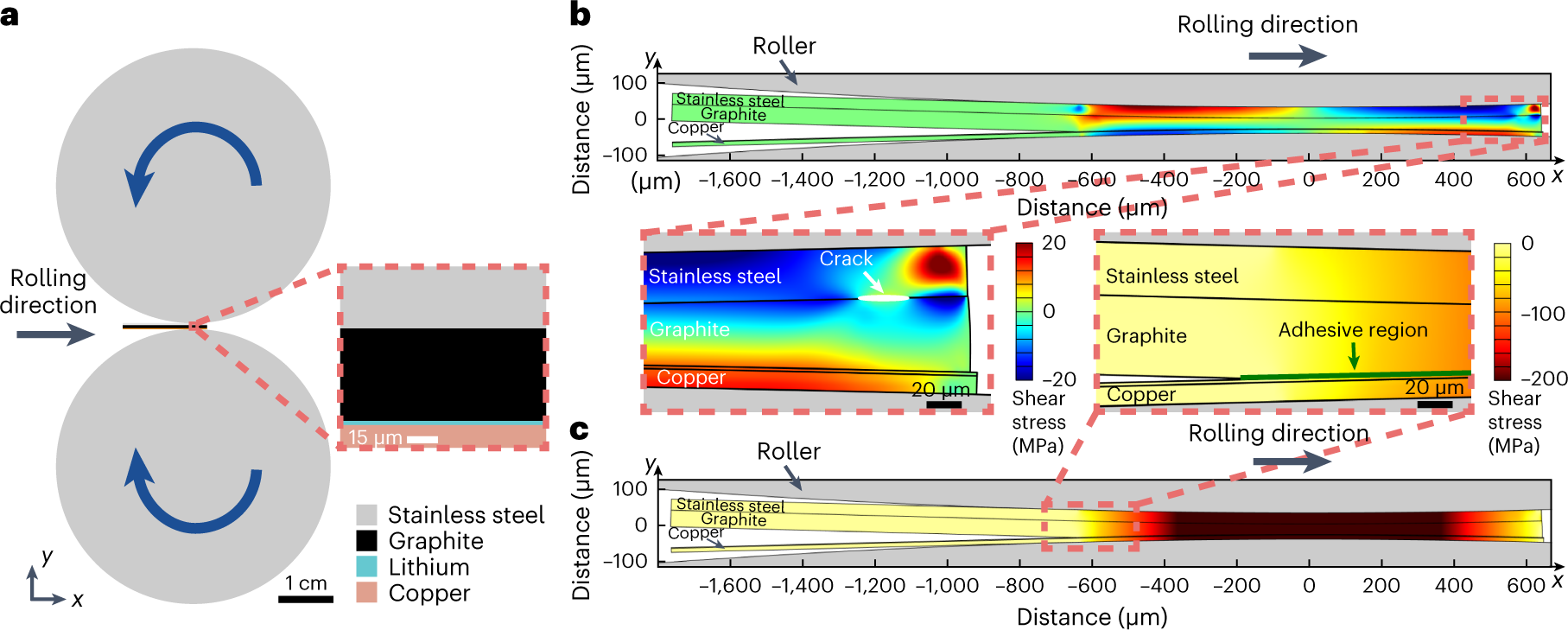

a, FE model of two rollers, the LiCF and the GrSS. b, Shear stress of the LiCF and the GrSS with a compressive strain of 0.20. A crack marked in the inset indicates the initiation of separation between the stainless-steel and graphite layers. c, Pressure of the LiCF and the GrSS with a compressive strain of 0.20. An adhesive region marked in the inset indicates the initiation of adhesion between the graphite layer and lithium layer.
