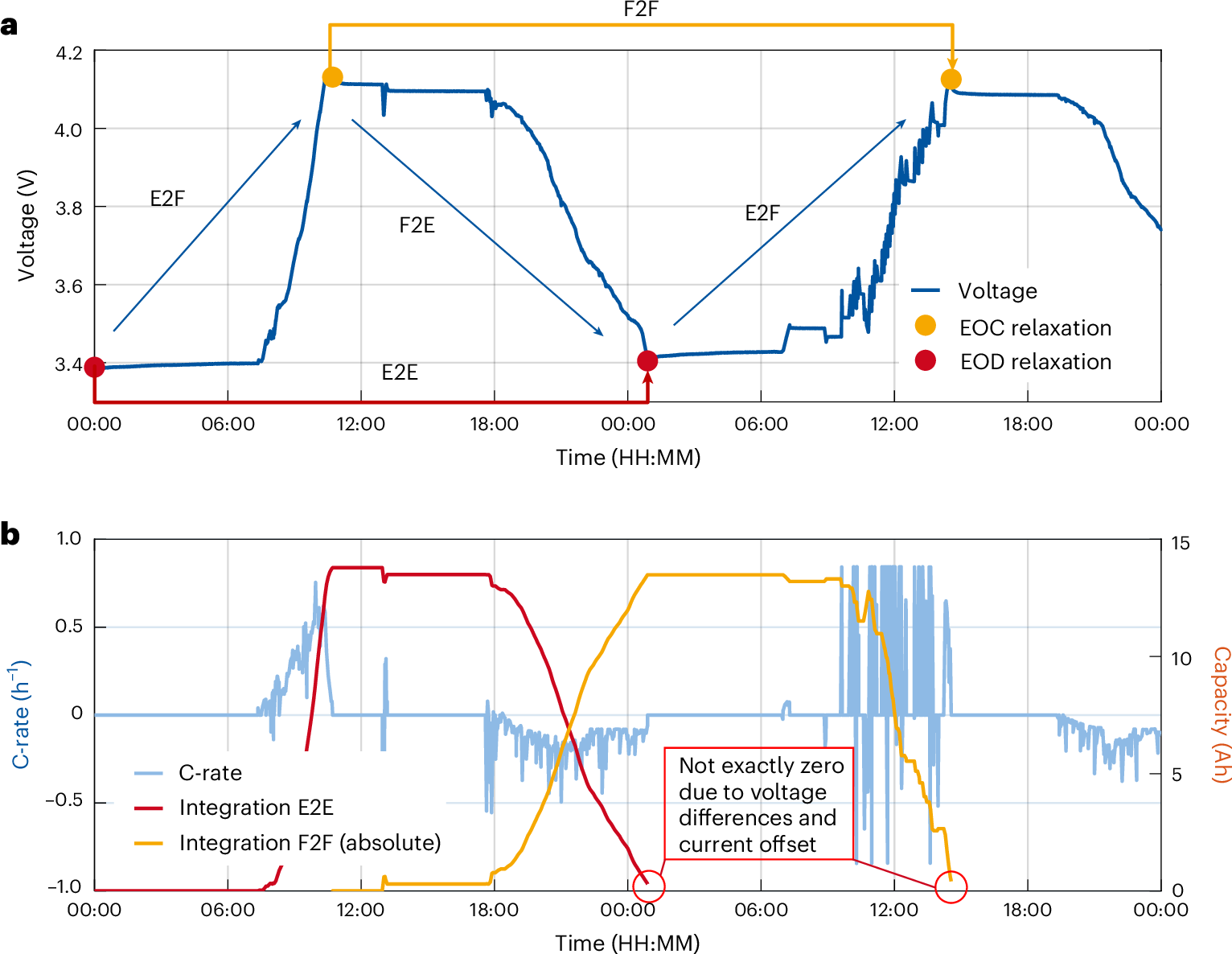

Fig. 3: Methodology of the capacity estimation based on field measurements of an exemplary SLMO HSS (15 Ah cell).

From: Multi-year field measurements of home storage systems and their use in capacity estimation

Fig. 3

a, Voltage and relaxation points. To identify full cycles, EOC and EOD relaxations can be combined. Full cycles are represented between E2E and F2F. A full charge is represented by E2F and a full discharge by F2E. b, C-rate and capacity estimate. The current can be integrated between the identified relaxation points to compute the capacity.
