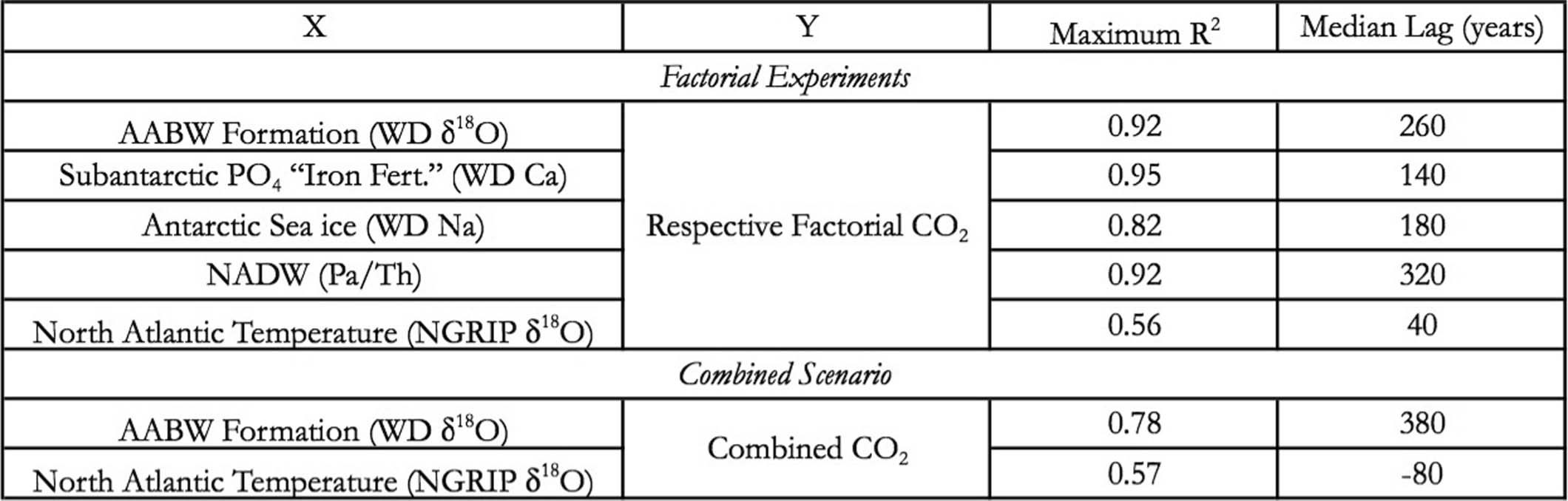

Extended Data Fig. 9: Lead-lag correlation analysis of model forcing and predicted CO2.
From: Abrupt changes in the global carbon cycle during the last glacial period
Lead-lag correlations for all model factorial experiments in which CO2 is driven soley by one forcing and lead-lag analysis of the combined scenario with forcings inputs from WD δ18O and NGRIP δ18O combined scenario.
