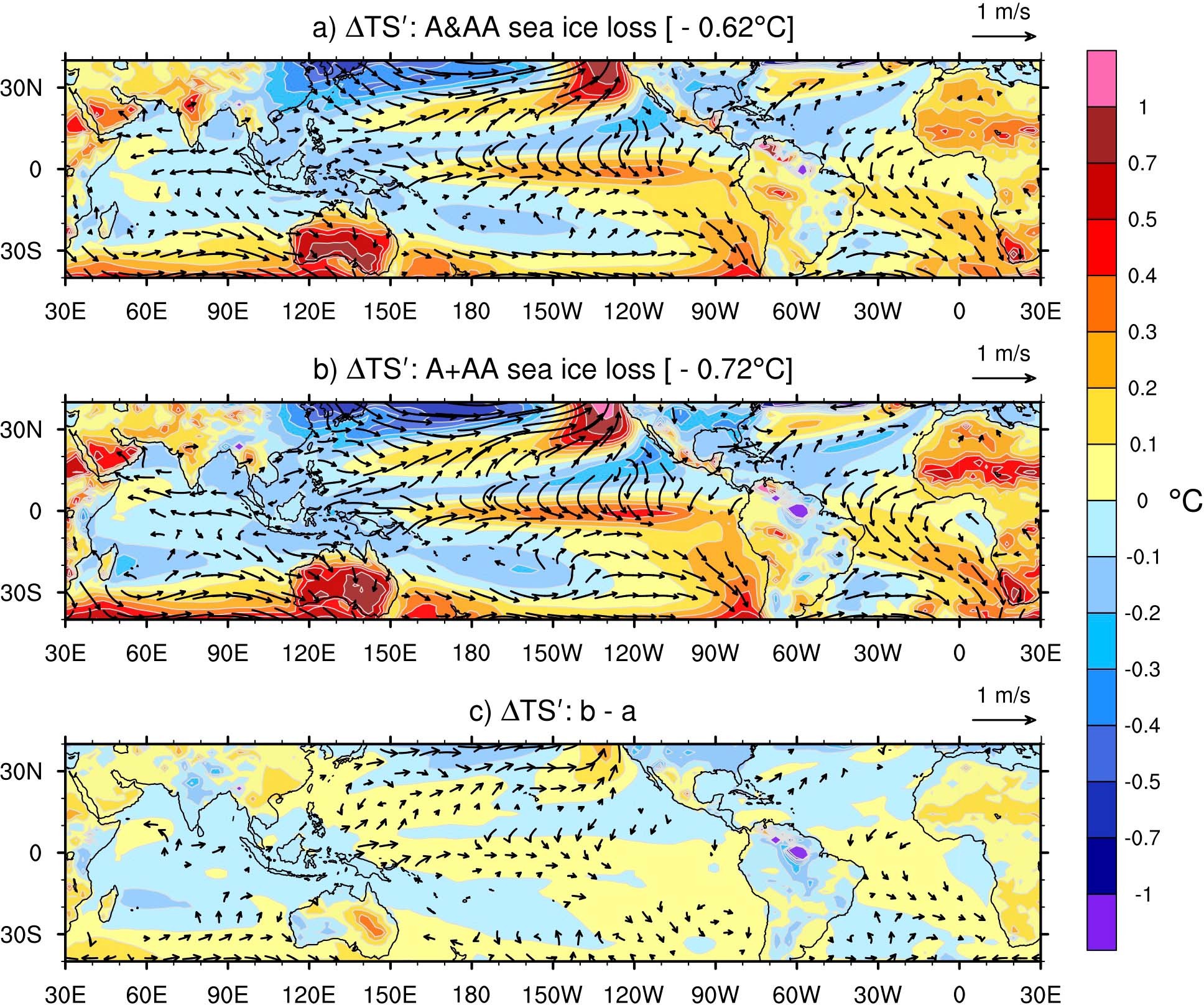

Extended Data Fig. 4: Additivity of the surface temperature response to sea ice loss.
From: Tropical climate responses to projected Arctic and Antarctic sea-ice loss
(a) The surface temperature response [°C] after subtracting the mean tropical SST warming (shaded contours) and the surface wind response [m/s] (vectors) to combined Arctic and Antarctic sea ice loss. (b) As in panel (a) except for the linear sum of the response to Arctic sea ice loss and the response to Antarctic sea ice loss. (c) The difference between panels a and b.
