Extended Data Fig. 8: Downdip variations in interseismic coupling, Vp/Vs, and resistivity models.
From: Correlation of porosity variations and rheological transitions on the southern Cascadia megathrust

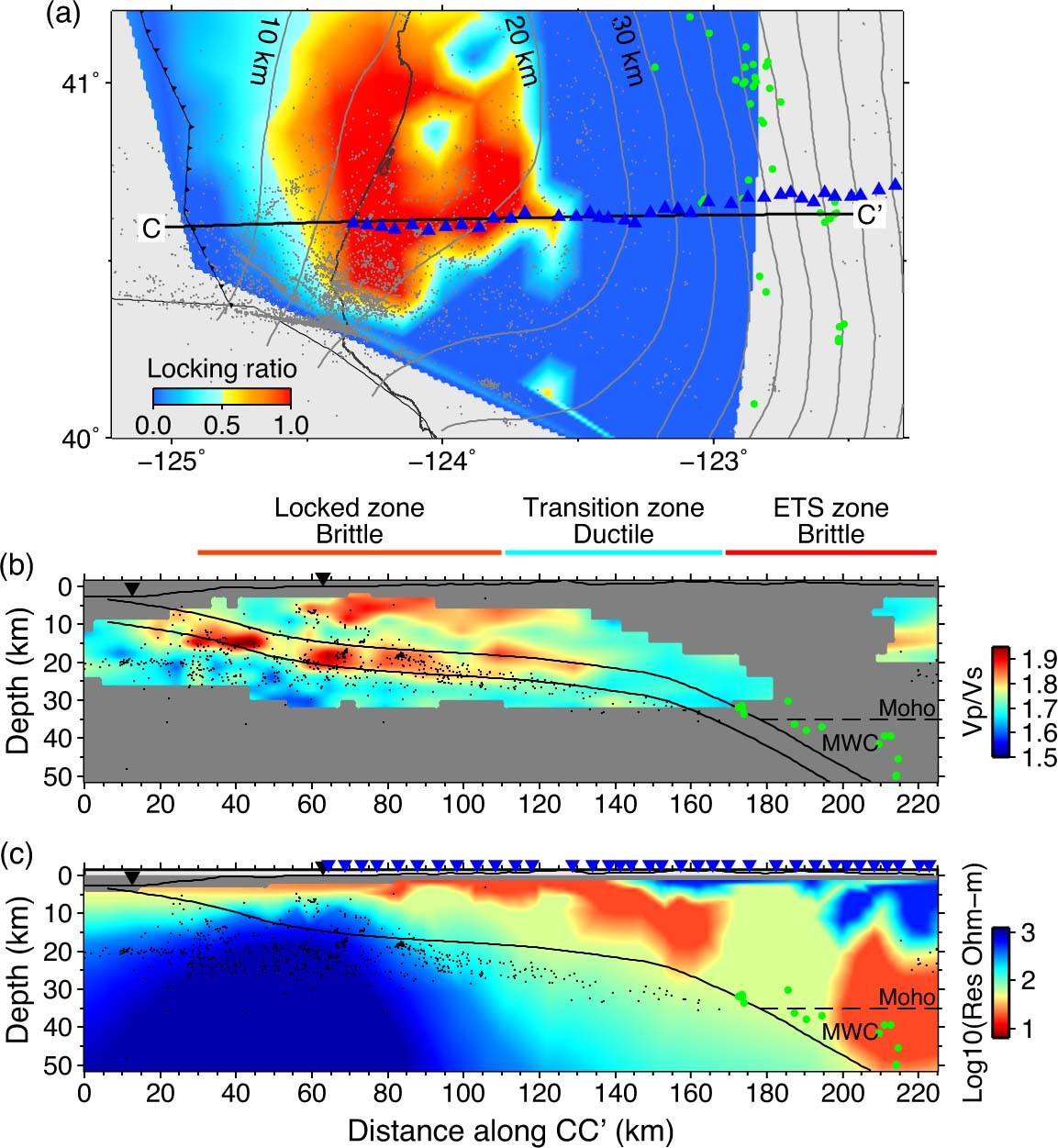

(a) Map view of the megathrust interseismic coupling model. (b–c) Vp/Vs and resistivity model cross-sections along CC’ shown in (a). The resistivity model is taken from Fig. 5 of ref. 25. Blue stations in (a) and (c) represent the MT stations25 within our study area. All the other elements in this figure are the same as those in Fig. 3a,c.
