Extended Data Fig. 3: Final Vp and Vs models at the cross-sections of AA’-EE’.
From: Correlation of porosity variations and rheological transitions on the southern Cascadia megathrust

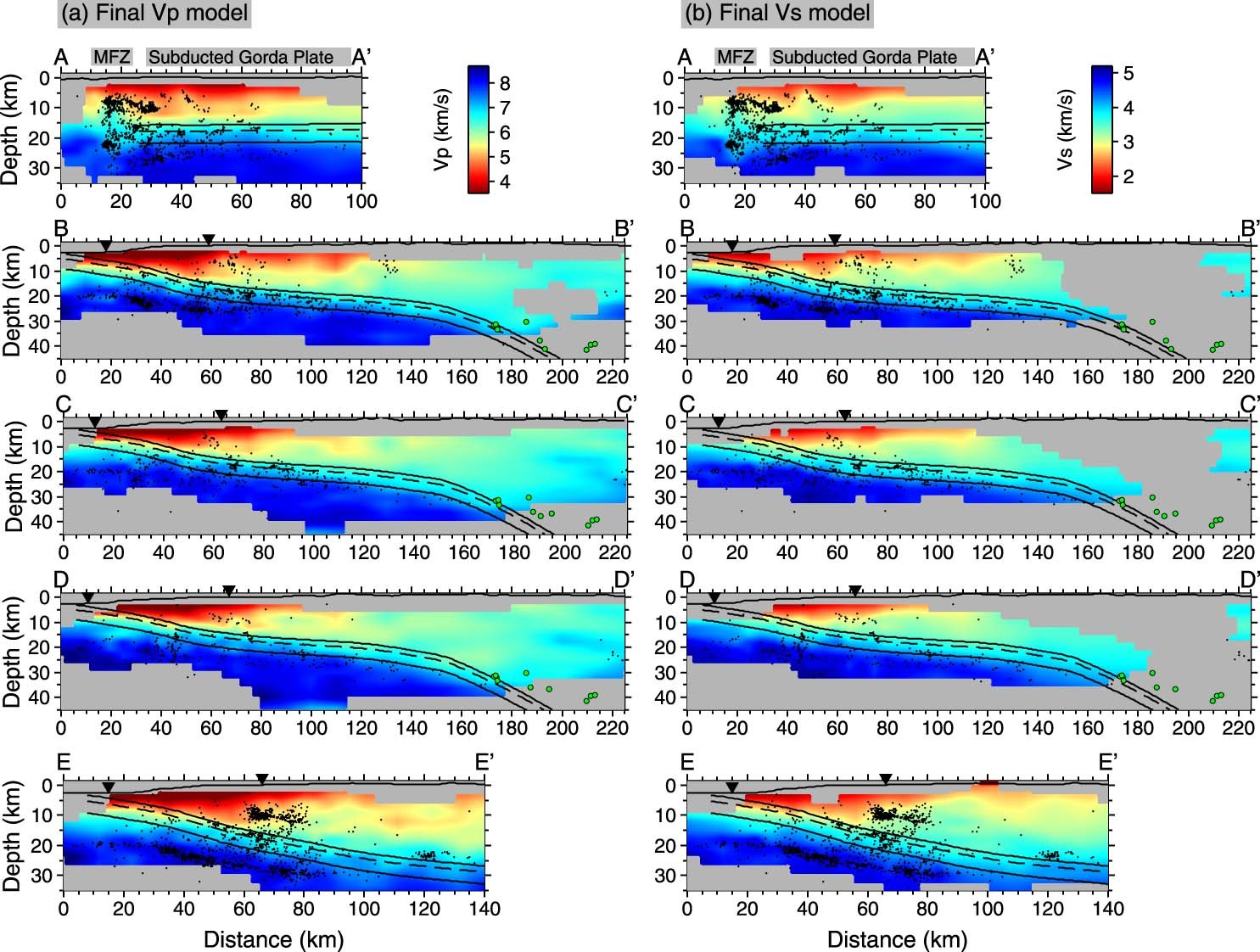

(a) Vp model. (b) Vs model. Earthquakes (black dots) and LFEs (green dots) are within 5 and 20 km of the cross-sections, respectively. Solid lines near the surface represent the bathymetry. Solid lines at depth are 2 km above and 4 km below the plate interface model of ref. 30 (dashed lines). Inverted black triangles represent the deformation front and coast. Low-resolution regions, estimated from checkerboard resolution test, are masked to gray.
