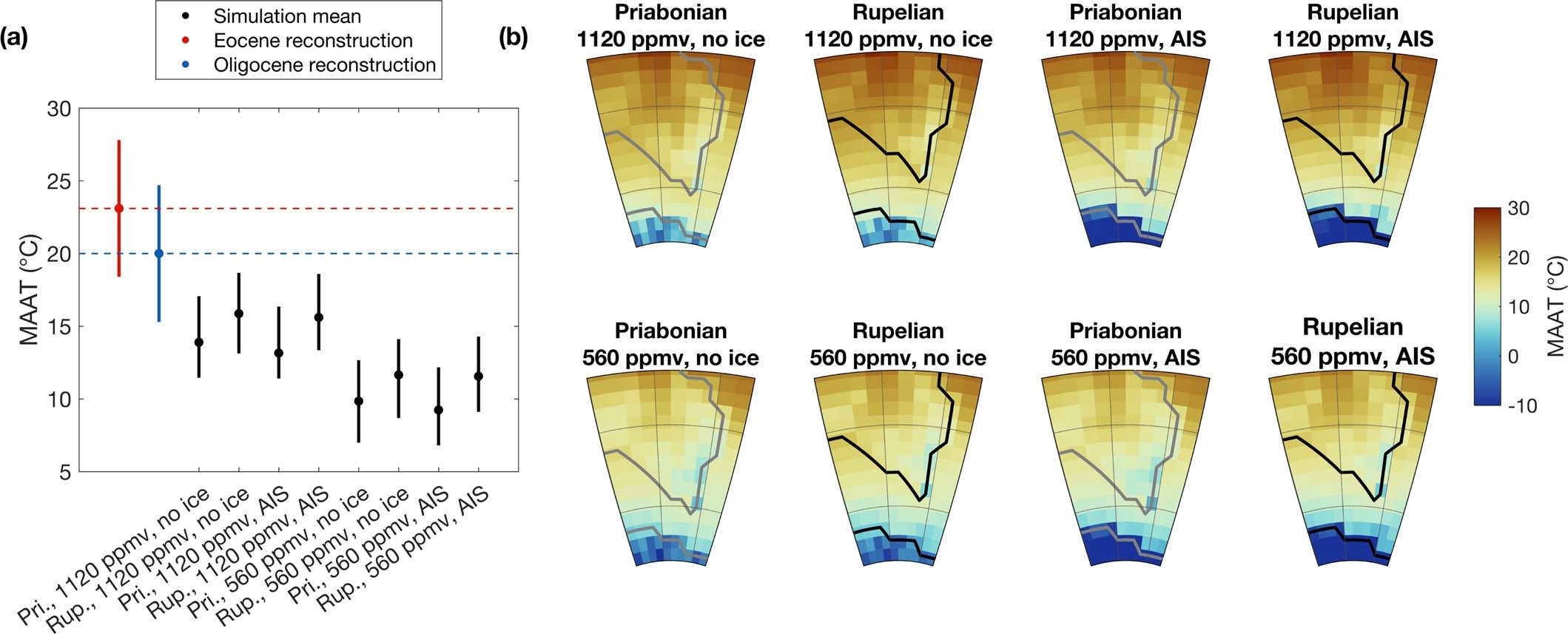

Extended Data Fig. 4: Modelled Mean annual air temperature (MAAT).
From: Eocene to Oligocene terrestrial Southern Hemisphere cooling caused by declining pCO2
a, Modelled mean annual air temperature (MAAT) for each of the 8 simulations used in this analysis (black dots and error bars) compared to the South Australia lignite record (coloured dots and error bars). Model error is taken as the maximum and minimum values from the 3 × 3 grid cell box surrounding the proxy location. Annual mean temperatures display a cold bias both before and after the EOT (see text). b, Maps showing the MAAT for each simulation over the South Australia region.
