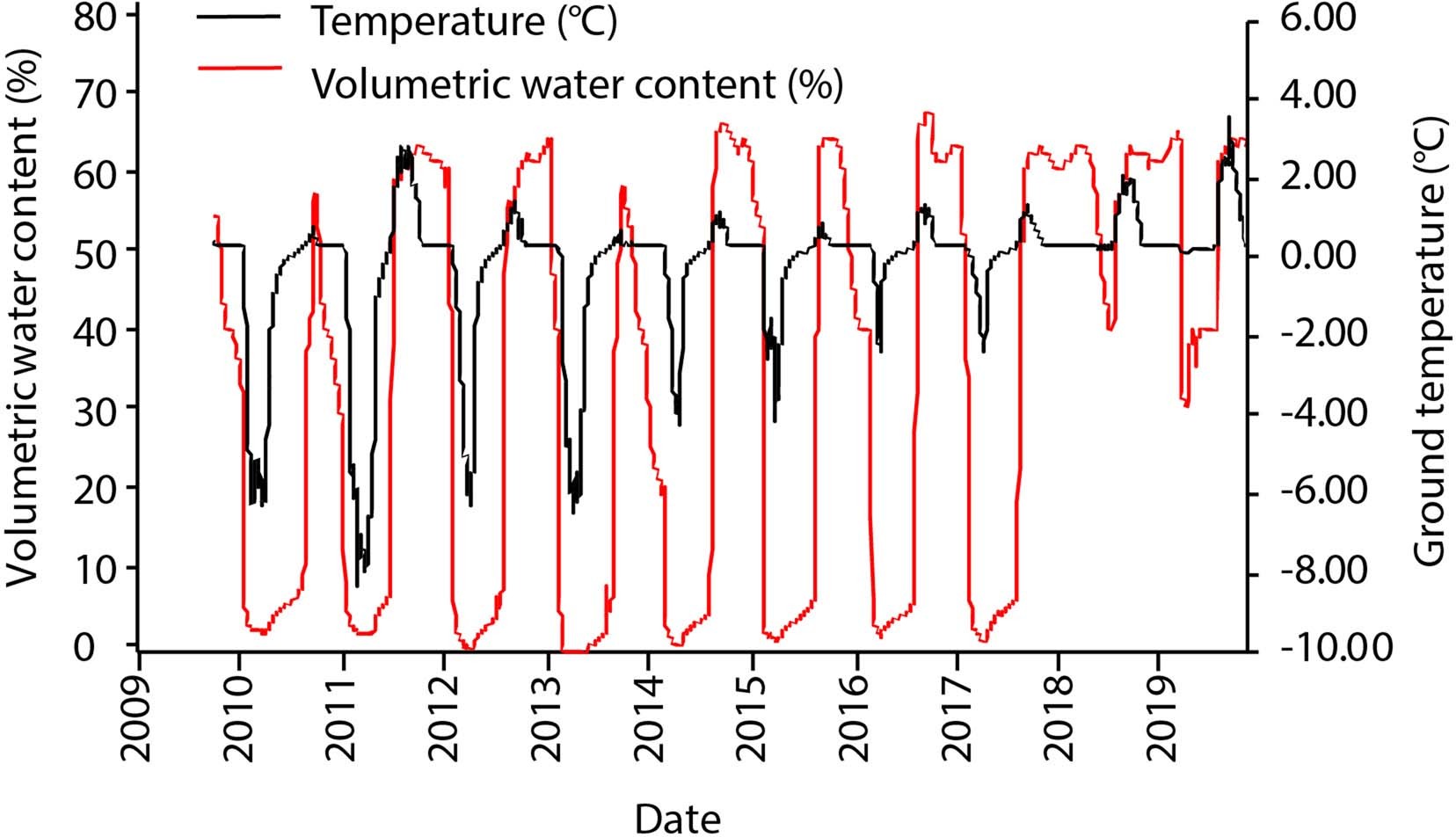

Extended Data Fig. 3: Bonanza Creek volumetric liquid water content (%) and ground temperature (°C) at 0.54 m depth between fall 2009 and summer 2019.
From: Sub-aerial talik formation observed across the discontinuous permafrost zone of Alaska
Note the lack of freezing during the winters of 2017–2018 and 2018–2019.
