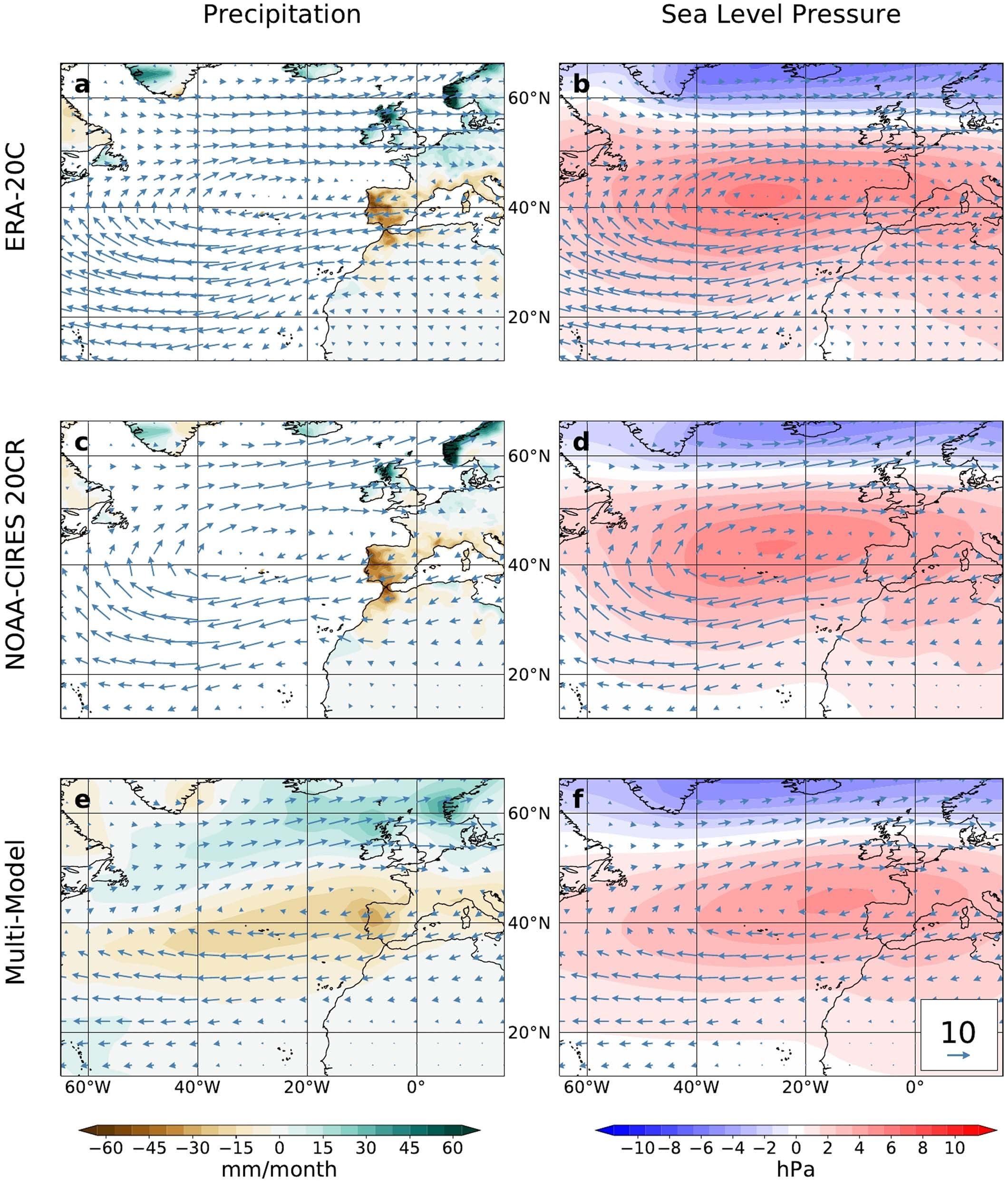

Extended Data Fig. 3: Hydroclimate during winters with extremely large Azores High in observations and models.
From: Twentieth-century Azores High expansion unprecedented in the past 1,200 years
(a,c,e) Wintertime anomalies in precipitation (contours) and moisture transport in g kg–1 m s–1 (vectors) during winters with extremely large Azores High. (b,d,f) Wintertime anomalies in sea level pressure (contours) and moisture transport (vectors) during winters with extremely large Azores High. Each row was calculated using the dataset indicated to the left. Precipitation in (a) and (c) is based on the GPCC dataset. The multi-model ensemble was calculated using PMIP3 models interpolated onto a regular 2° by 2°grid.
