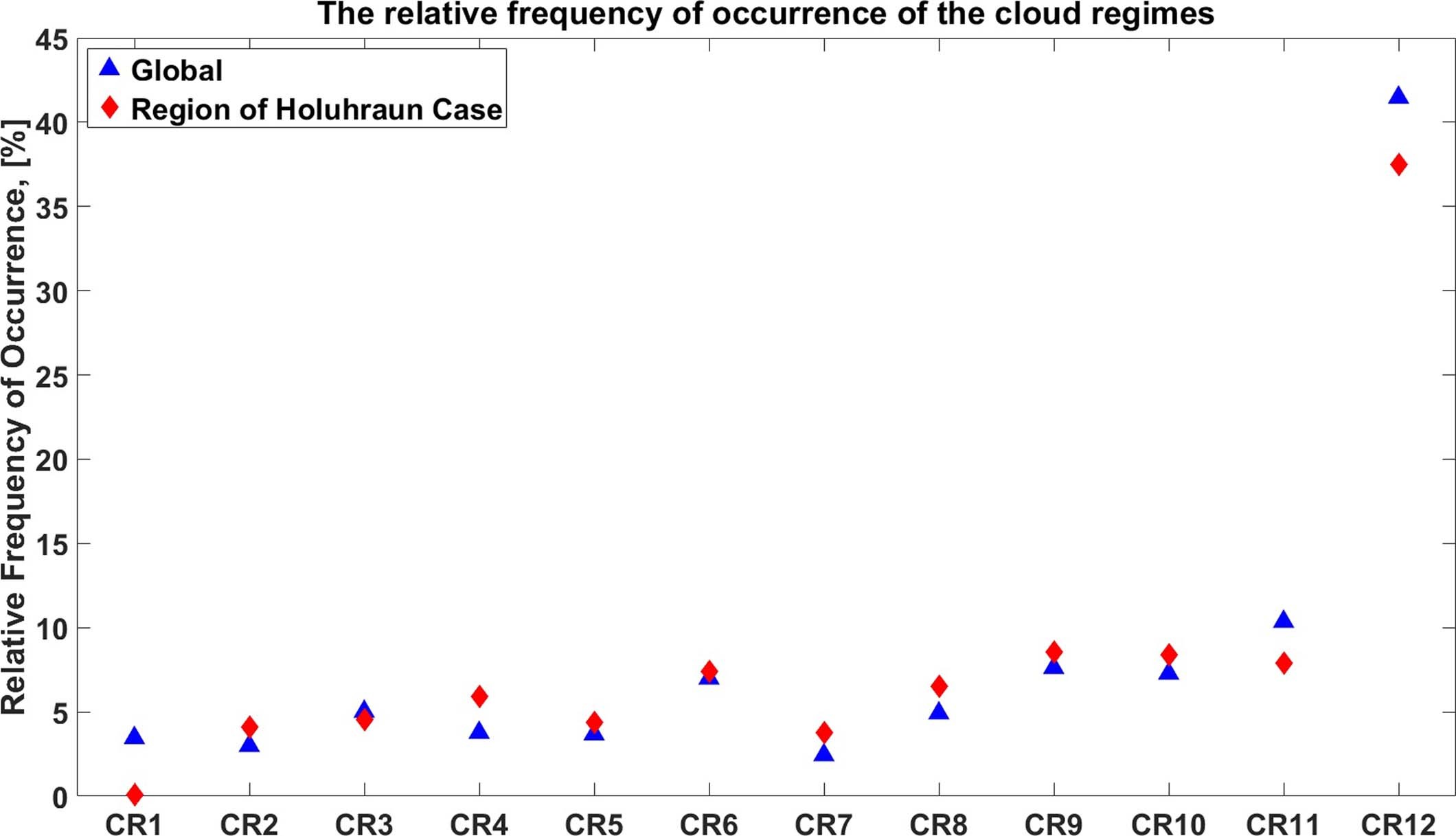

Extended Data Fig. 1: Relative frequency of occurrence (RFO) of cloud regimes.
From: Machine learning reveals climate forcing from aerosols is dominated by increased cloud cover
The RFO values of the region studied here in September-October 2014 are given in red diamonds, data sourced from Malavelle et al.15. The RFO values during 2002–2014 globally are given in blue triangles, data sourced from Oreopoulos et al.40. CR6-CR11 are liquid-dominated cloud regimes, and the others are ice-dominated cloud regimes. The details of each cloud regime are given in the above references accordingly.
