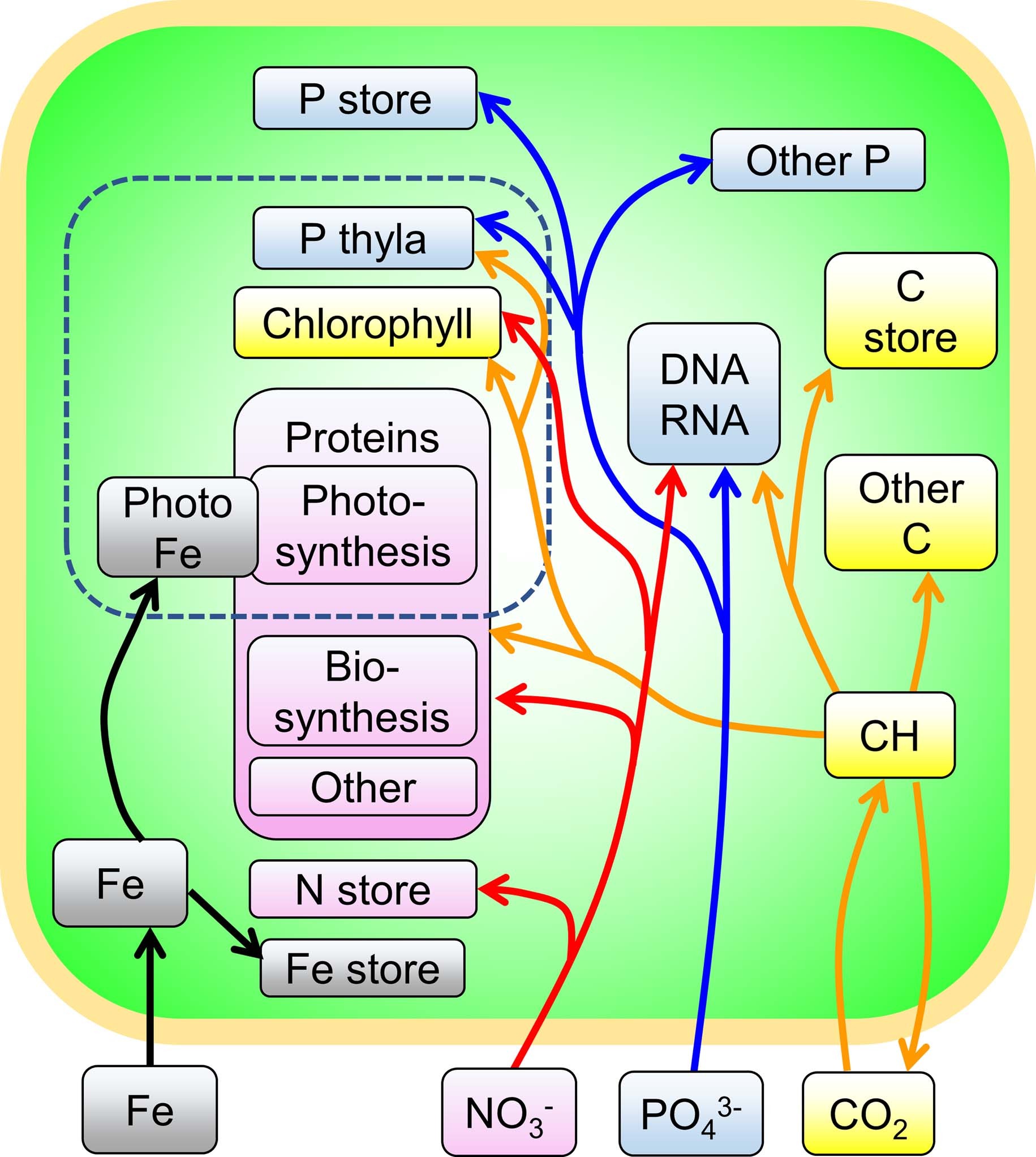

Extended Data Fig. 1: Schematic of CFM-Phyto component of this study.
From: Global patterns in marine organic matter stoichiometry driven by phytoplankton ecophysiology
Orange, red, blue, and black arrows represent C, N, P, Fe fluxes, respectively. Yellow, red, blue, gray squares are molecules that mainly influence C, N, P and Fe budgets, respectively. Dashed squre represents photosynthetic molecules. CH and P thyla represent precursor carbohydrates and P in thylakoid membranes, respectively. Green space and orange outline represent the intracellular space and cell membrane layers, respectively.
