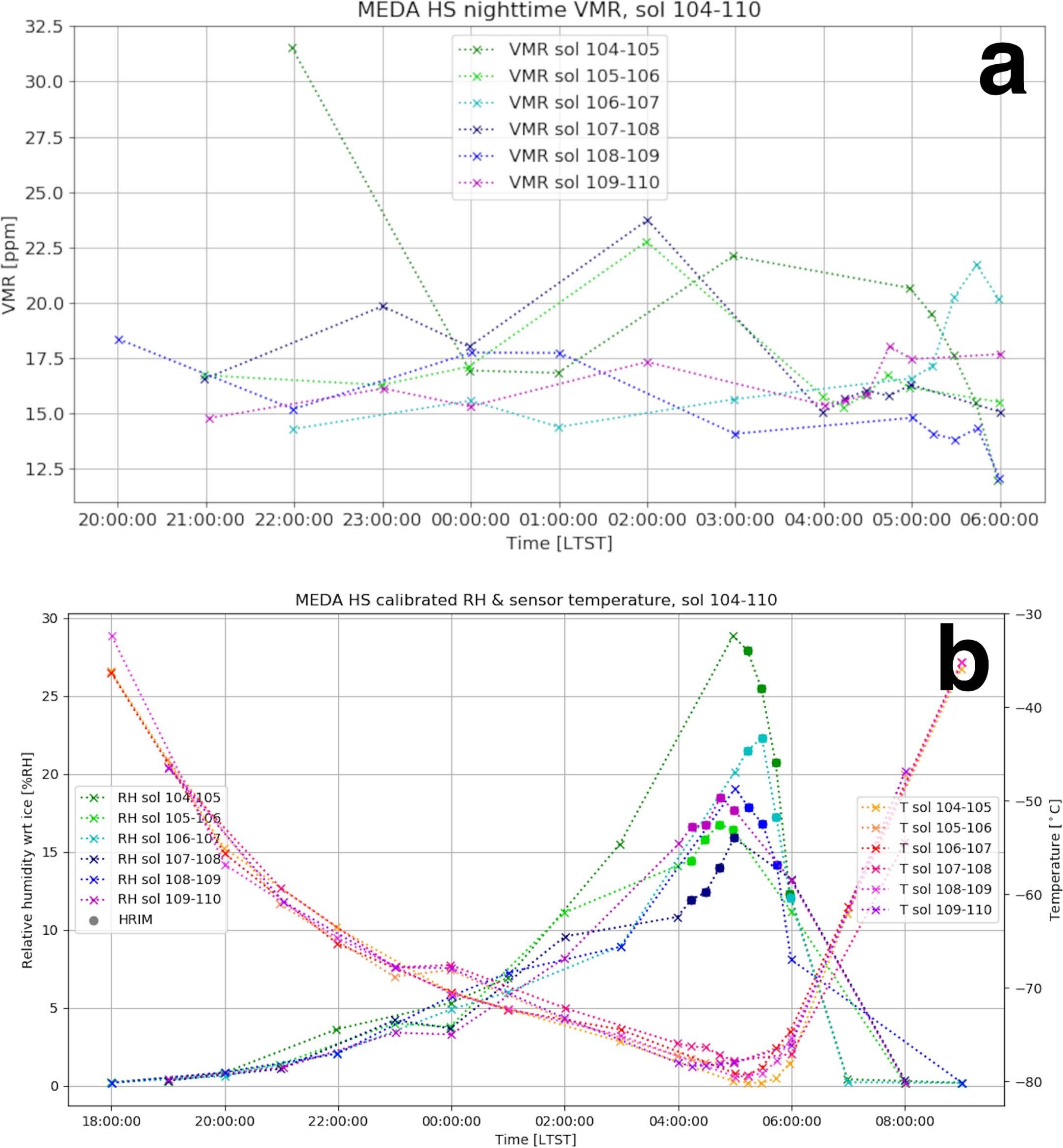

Extended Data Fig. 8: Evolution of VMR and RH on sols of maximum variability.
From: The diverse meteorology of Jezero crater over the first 250 sols of Perseverance on Mars
MEDA instrument has recorded a more complex hydrological cycle than expected. (a) Detail of the daily evolution of RH in characteristic sols (sols 104 to 110), where the complex and temporally variable structure of the nocturnal hydrological cycle can be observed, sometimes not foreseen by the simulation models. (b) Daily evolution of the VMR for the sols shown in (a). A large increase in the VMR was observed on the evening of sol 104.
