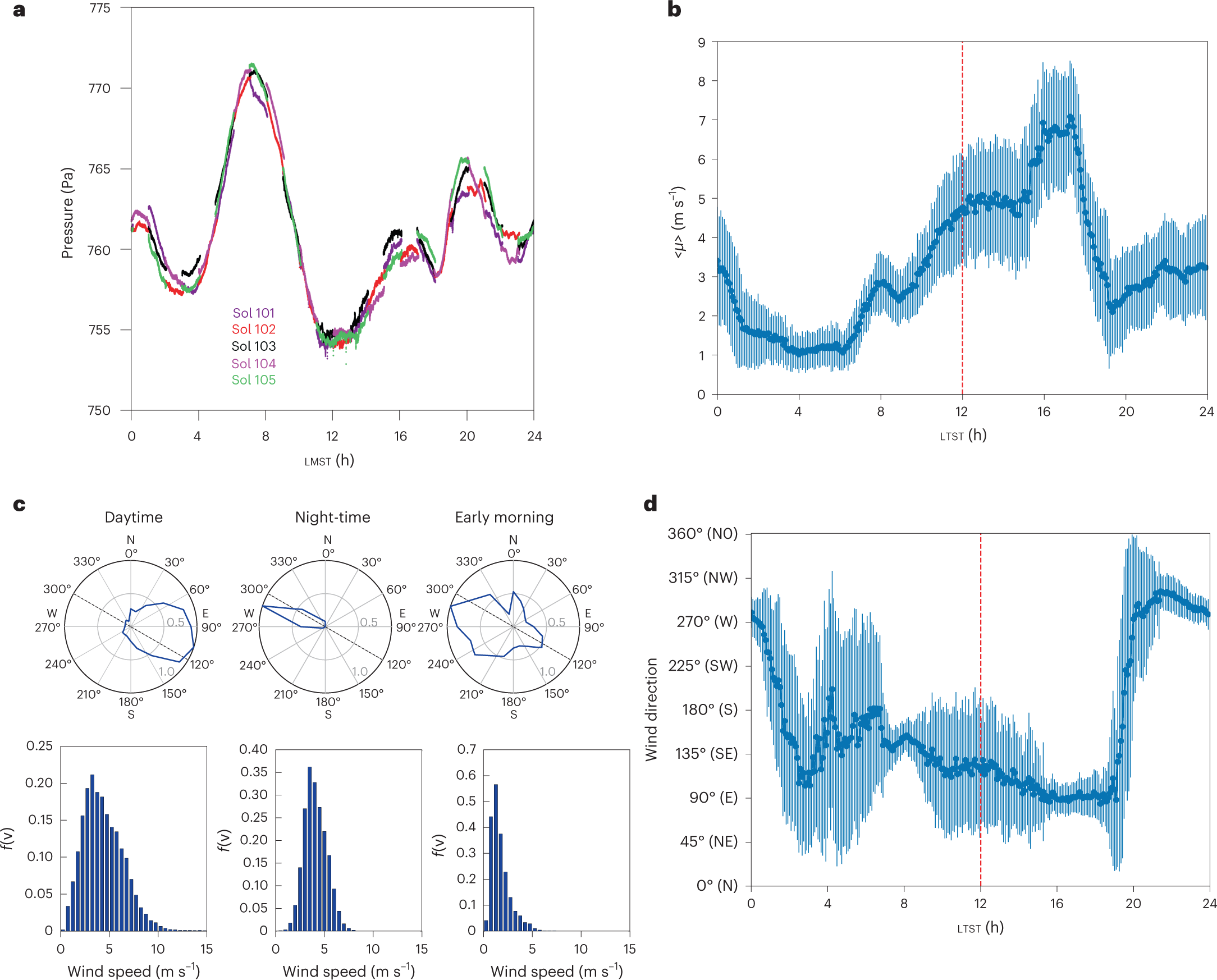

Fig. 3: Fluctuations in the daily pressure cycle and wind patterns.
From: The diverse meteorology of Jezero crater over the first 250 sols of Perseverance on Mars
a, Daily pressure cycles for sols 101–105, showing deviations from the mean values (in 10 s intervals) caused by different dynamic phenomena. b, Mean values of wind intensity, averaged in intervals of 5 min. Error bars show the standard deviations. c, Wind azimuths in different time slots (dotted lines, ~120° azimuth, show the regional slope direction in the Isidis basin). We observe that upward winds predominate during the day and downward winds during the night, a trend attributable to local flows acting in Jezero and the interaction with other scales (top). Histogram of wind speed at those hours, that is, the frequency distribution of the occurrence of each speed, f(v) (bottom). d, Mean directions from which the winds blow, averaged in intervals of 5 min. Error bars show the standard deviations.
