Extended Data Fig. 2: Patterns of turbulent fluxes of momentum in a shallow mixing layer, Mr = 20.
From: Mixing dynamics at river confluences governed by intermodal behaviour

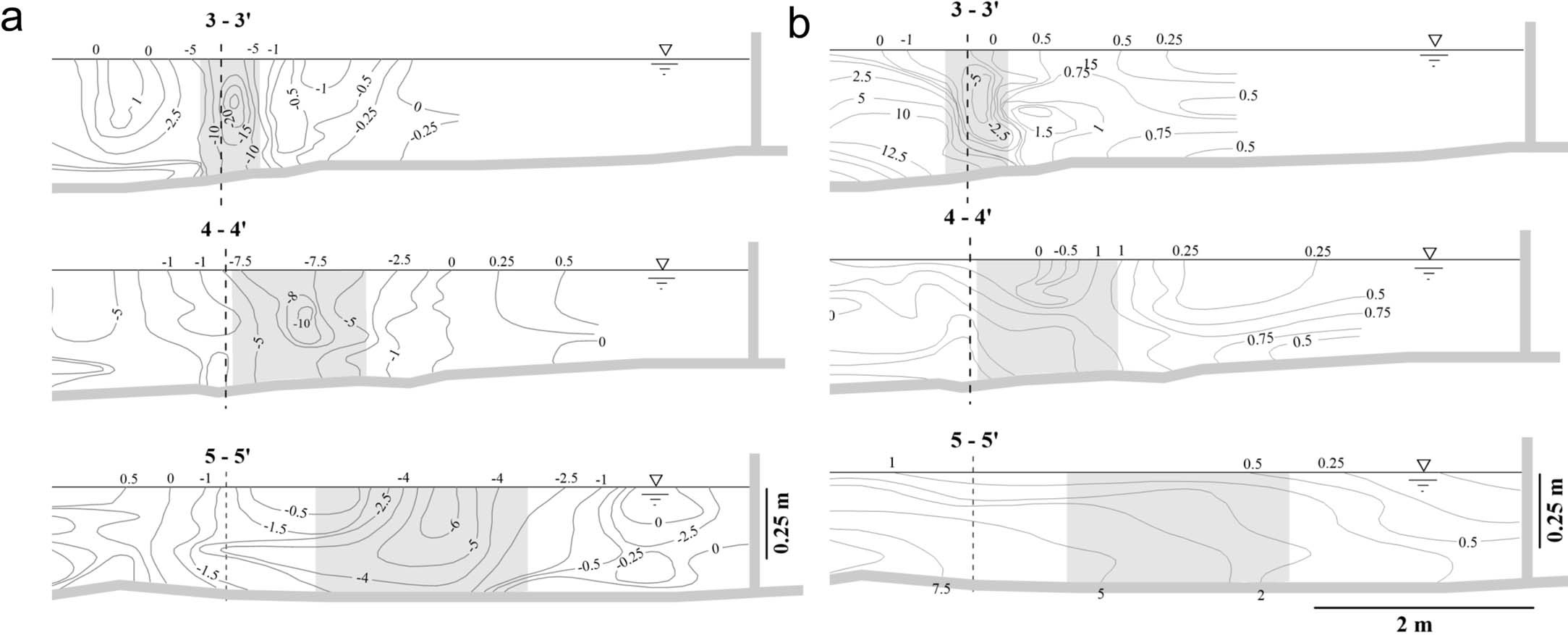

a, Lateral turbulent fluxes of momentum \(- \overline {u\prime v\prime }\). b, Vertical turbulent fluxes of momentum \(- \overline {u\prime w\prime }\). Contour lines are in cm2s-2; and grey sheading highlights the mixing layer area; dashed lines show positions of the flume centerline, locations of the sections are shown on Extended Data Fig. 1a.
