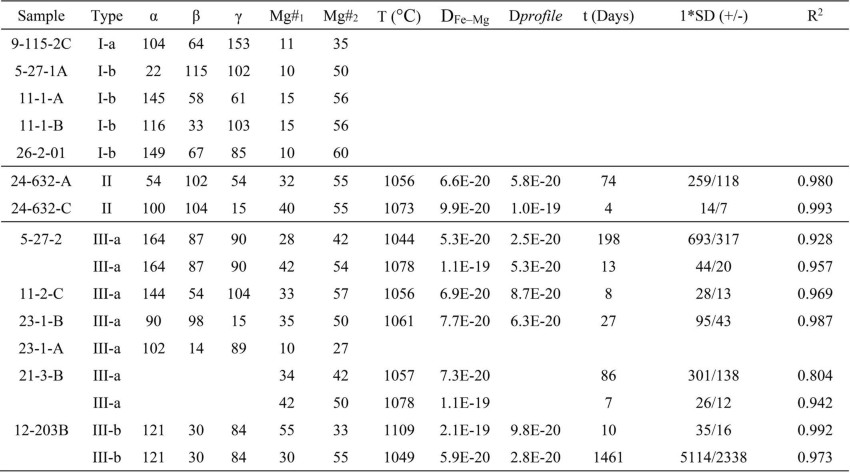

Extended Data Table 2 Calculated residence times (days) obtained by modeling Fe-Mg diffusion in clinopyroxene from the Chang’E-5 basaltic fragments

From: The magmatic architecture and evolution of the Chang’e-5 lunar basalts

  1. The BSE images and profiles of reprehensive samples are given in the Fig. 2 and Extended Data Fig. 2. Type I-a, microlites; I-b, large phenocrysts; Type II, patchy zoning; Type III-a, normal zoning and Type III-b, reverse zoning. α, β, and γ are angles between the measured profile and [100], [010] and [001] axes, respectively. DFe–Mg and Dprofile is diffusion coefficient along the [001] axis and the profile, respectively. The error calculation uses the same method as suggested by64.
