Extended Data Fig. 5: Data fits for the 30th iteration of run40.
From: Forearc seismogenesis in a weakly coupled subduction zone influenced by slab mantle fluids

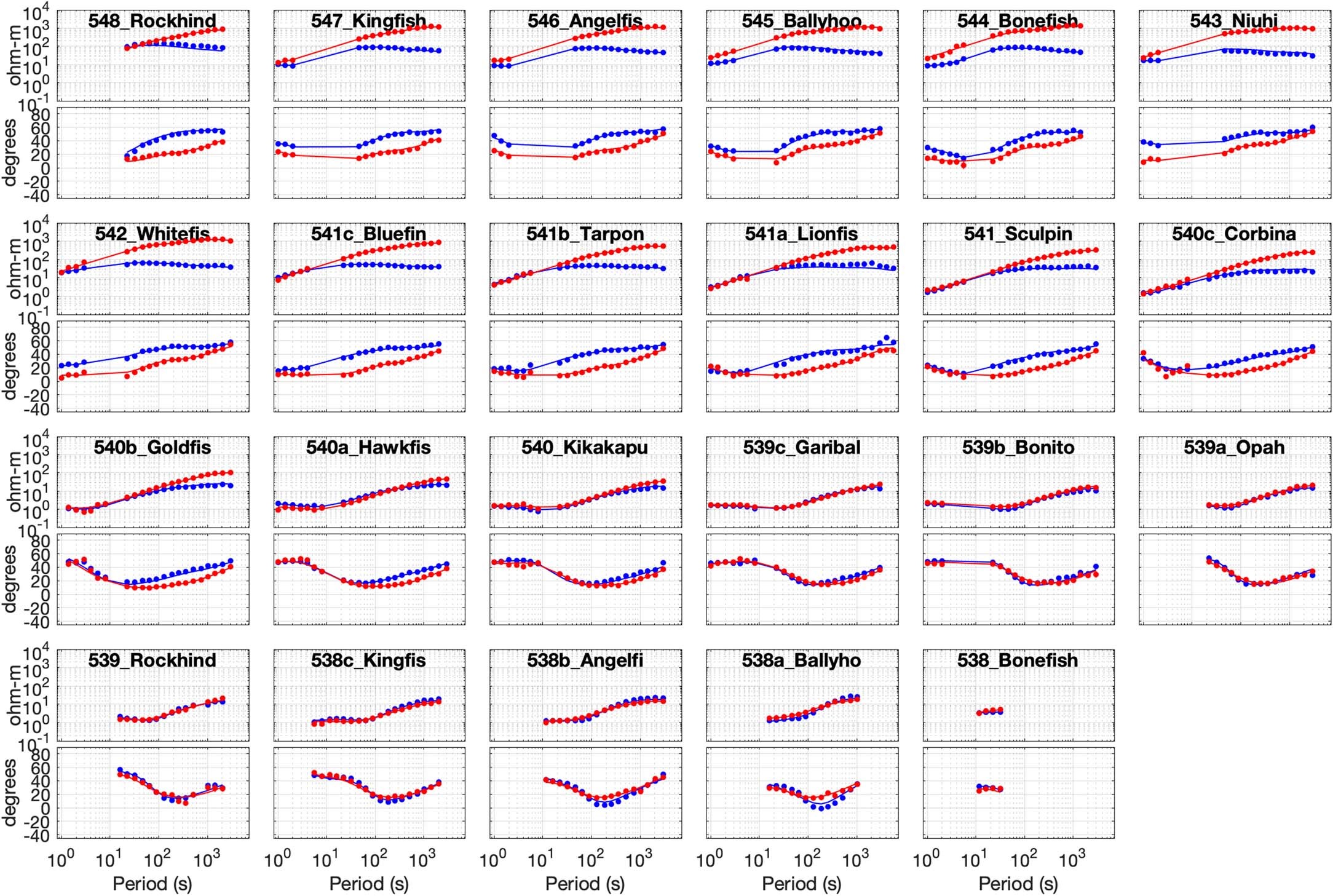

Data fits for the 30th iteration of run40 with an overall r.m.s. misfit of 1.00. Red dots and blue dots are TM and TE mode data, respectively. Curves are the inversion response. Error bars on the data points are smaller than the data marker.
