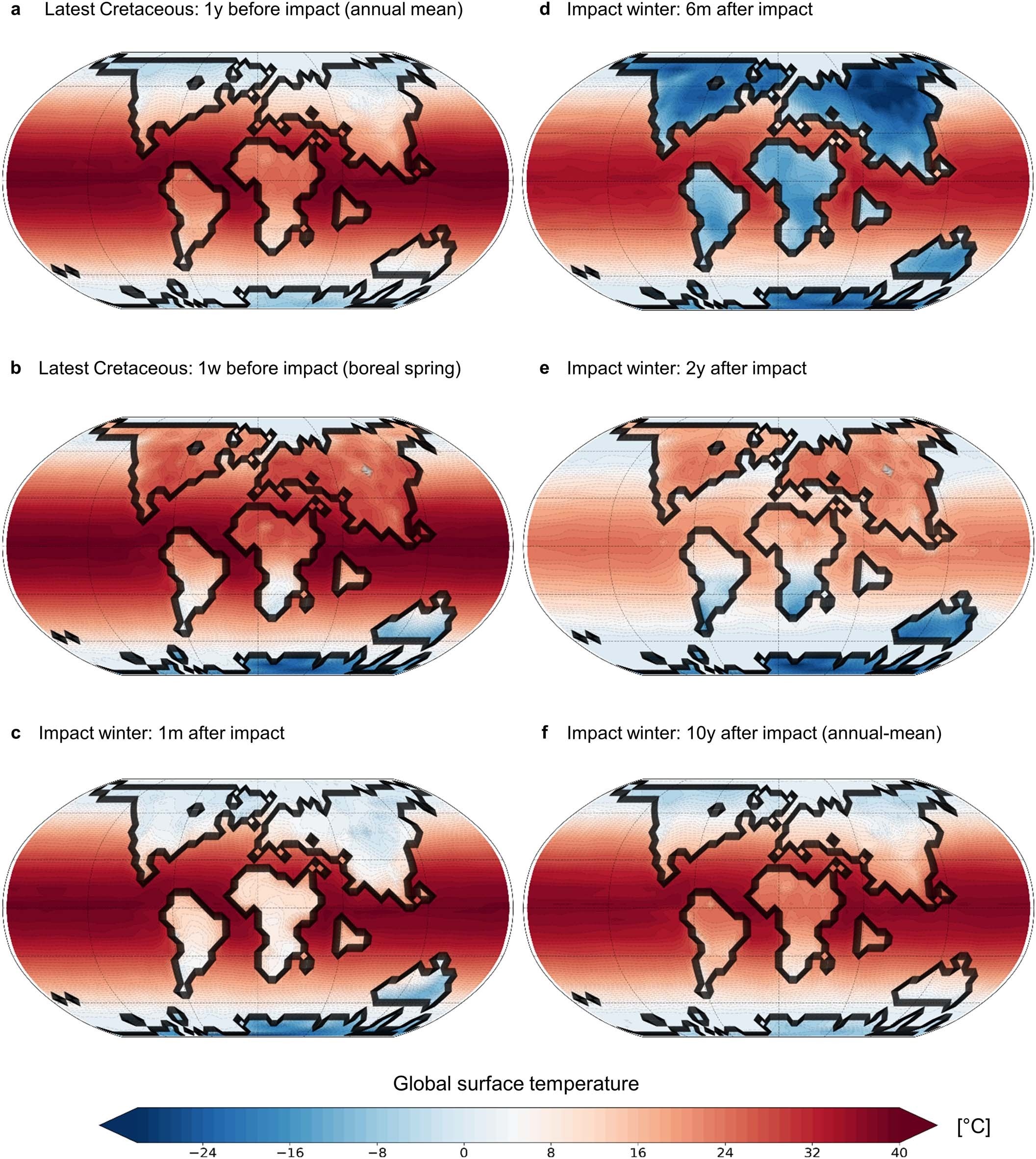

Extended Data Fig. 5: Global surface temperature reconstructions using the combined fine-grained ejecta scenario.
From: Chicxulub impact winter sustained by fine silicate dust
Results are displayed on a latest Cretaceous paleogeographic map (Extended Data Fig. 1a) and shown for different time snapshots. a Latest Cretaceous, 1 year before impact (annual mean). b Latest Cretaceous, 1 week before impact. c Impact winter, 1 month after impact. d 6 months after impact. e 2 years after impact. f 10 years after impact (annual-mean). Base maps are based on the latest Cretaceous paleogeographic data42.
