Extended Data Fig. 7: Aerosol-cloud interactions in July 2018.
From: Substantial cooling effect from aerosol-induced increase in tropical marine cloud cover

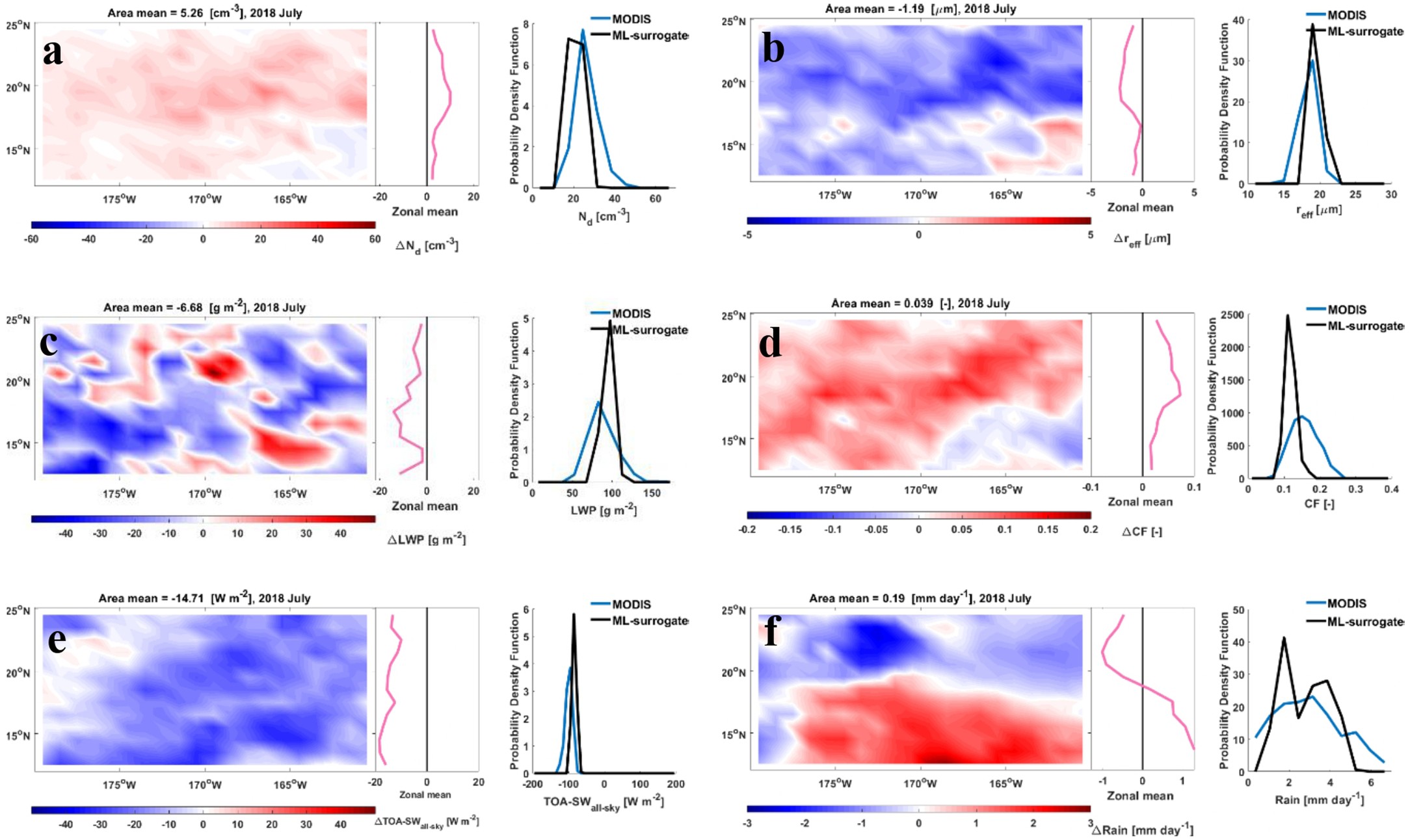

The colours indicate the differences between volcanic aerosol perturbation and normal conditions, i.e., observations – machine-learning surrogate. Zonal mean values and probability distribution function are also provided in the middle and right subpanels. The panels show (a) Nd, (b) reff, (c) in-cloud LWP, (d) CF, (e) TOA downward shortwave radiation with blue color indicating cooling and red indicating warming, and (f) rainfall.
