Extended Data Fig. 7: Ring fault spherical reservoir source inversions with ring fault centered over spherical reservoir and Gaussian slip.
From: Explosive 2018 eruptions at Kīlauea driven by a collapse-induced stomp-rocket mechanism

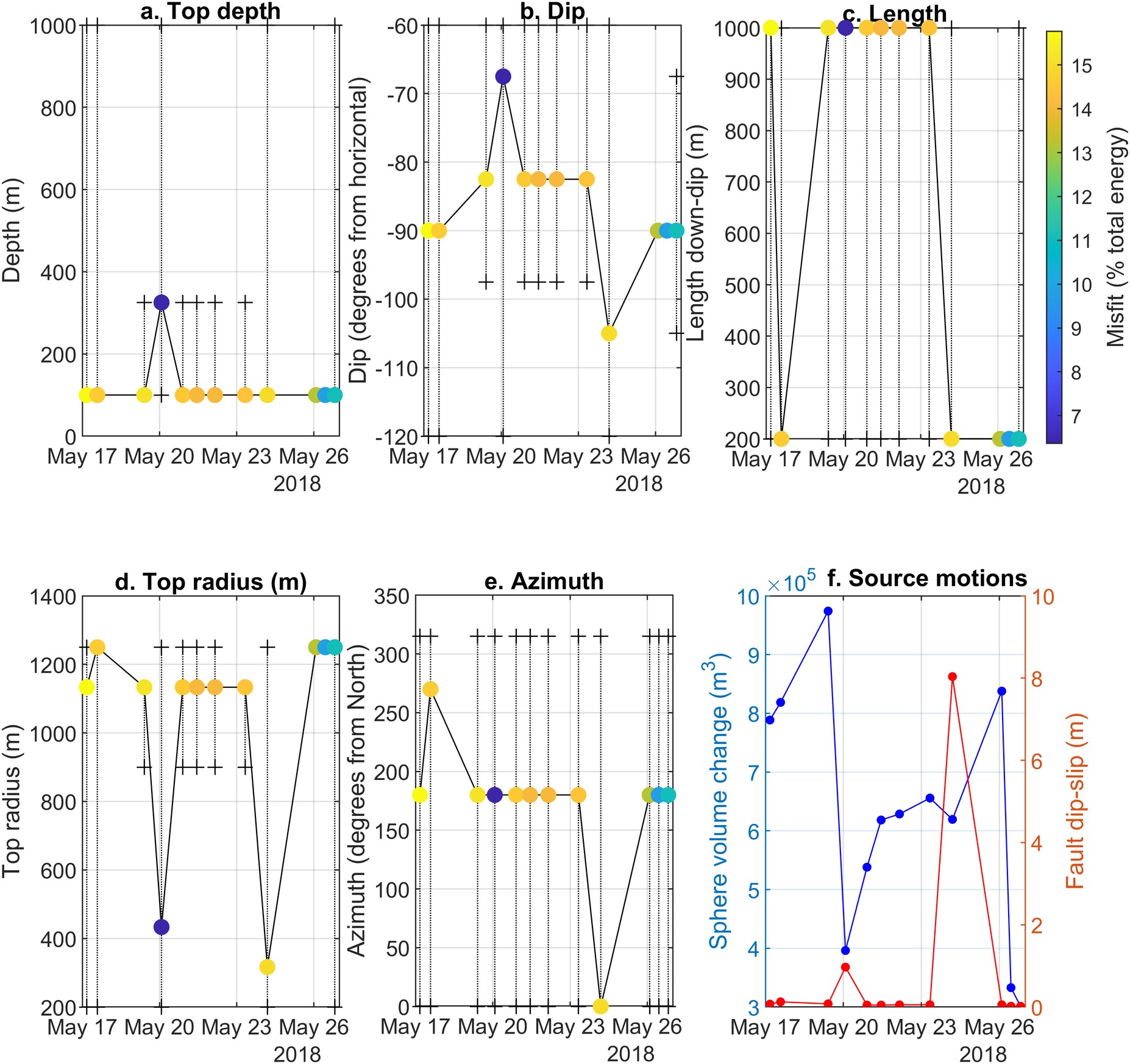

In these inversions spherical source location was fixed based on geodetic inversions. a-d, Ring fault location and geometry. Dots mark best fits and plus symbols and dotted lines mark bounds where fits within a misfit ratio of 1.05 of the best fit can be found. Dips between -90° and 0° represent inward dipping ring faults. e, Azimuth at which the Gaussian ring fault slip distribution is centered. f, Sphere volume change and ring fault dip–slip motion (at the center of the Gaussian slip distribution).
