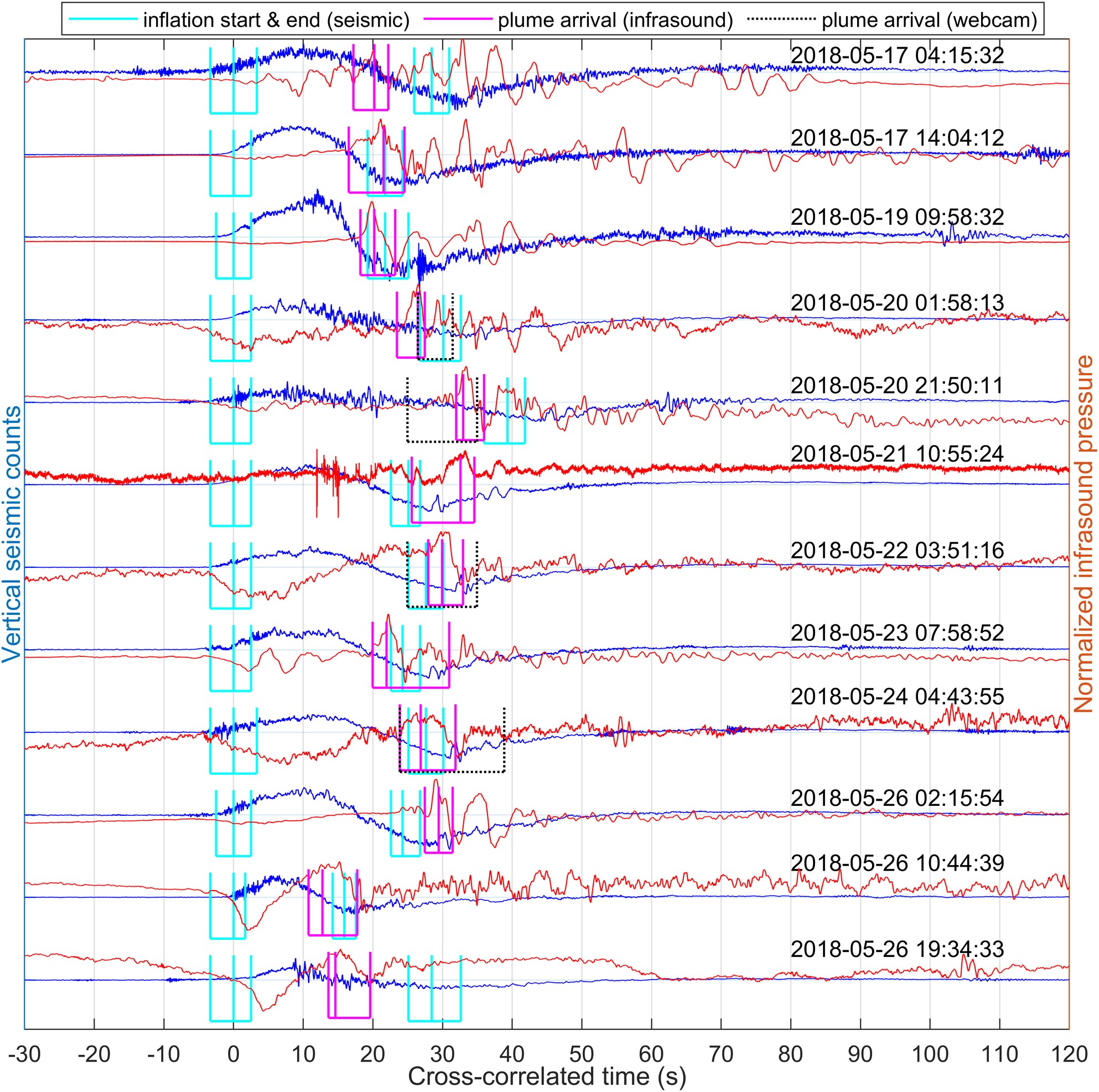

Extended Data Fig. 1: RIMD vertical seismic counts and stacked NPT infrasound pressures.
From: Explosive 2018 eruptions at Kīlauea driven by a collapse-induced stomp-rocket mechanism
Each infrasound channel is time-shifted based on approximate acoustic travel times from the vent centroid. Infrasound traces between events have been normalized to similar amplitudes. Ground shaking induced motion of the infrasound instrument likely contributes to these signals.
