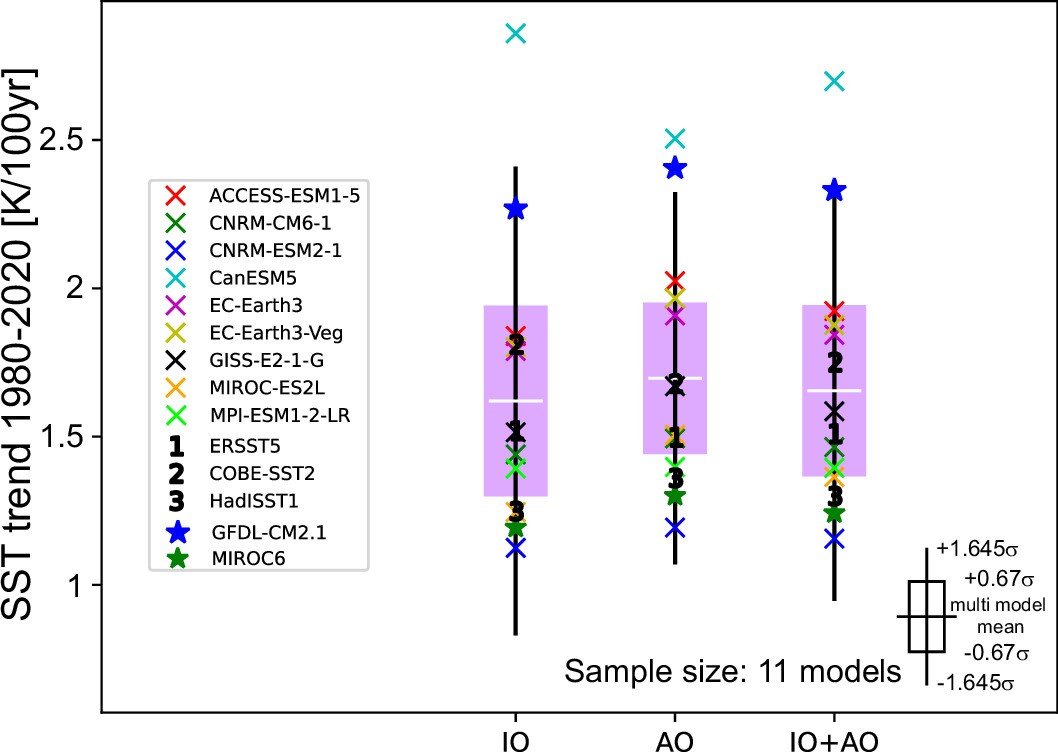

Extended Data Fig. 8: Observed and simulated sea surface temperature trends in the tropical Indian and Atlantic Oceans.
From: Walker circulation strengthening driven by sea surface temperature changes outside the tropics
The sea surface temperature trends in the tropical Indian Ocean (15°S-15°N, 40°-100°E), Atlantic Ocean (5°S-15°N, 50°W-0°E) and their average for 1980-2020. Crosses and stars indicate ensemble mean trends of individual models, and numbered makers represent observational datasets. White lines represent multi-model average of individual model ensemble means, and boxes and whiskers indicate ±0.67σ and ±1.645σ ranges, respectively. Models with 7 or more ensemble members are used for this analysis. The standard deviation was calculated from the values of 11 models.
