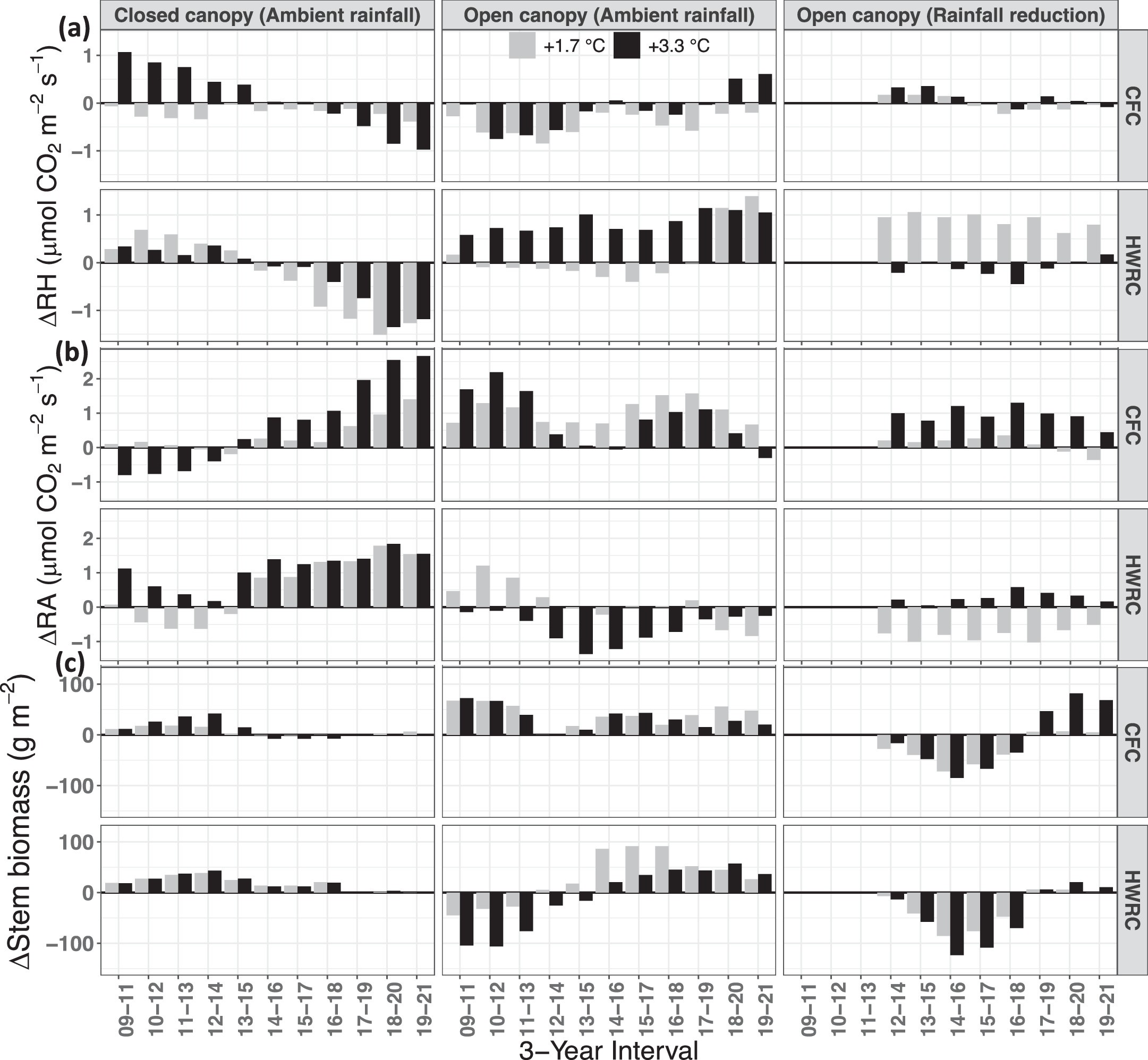

Extended Data Fig. 7: Three-year rolling mean change in annual soil respiration and stem biomass under experimental warming relative to ambient treatment.
From: Soil respiration response to decade-long warming modulated by soil moisture in a boreal forest
Panels under “Closed canopy (Ambient rainfall)” and “Open canopy (Ambient rainfall)” show results under different overstory canopy openness; panels under “Open canopy (Ambient rainfall)” and “Open canopy (Rainfall reduction)” show results under different rainfall amounts. Panels a, b and c show the results of the changes in RH, RA and stem biomass caused by warming, respectively. No data were shown for “09-11”, “10-12”, and “11-13” under Open canopy (Rainfall reduction) treatment because rainfall reduction treatment was conducted in 2012. RH: soil heterotrophic respiration; RA: soil autotrophic respiration.
