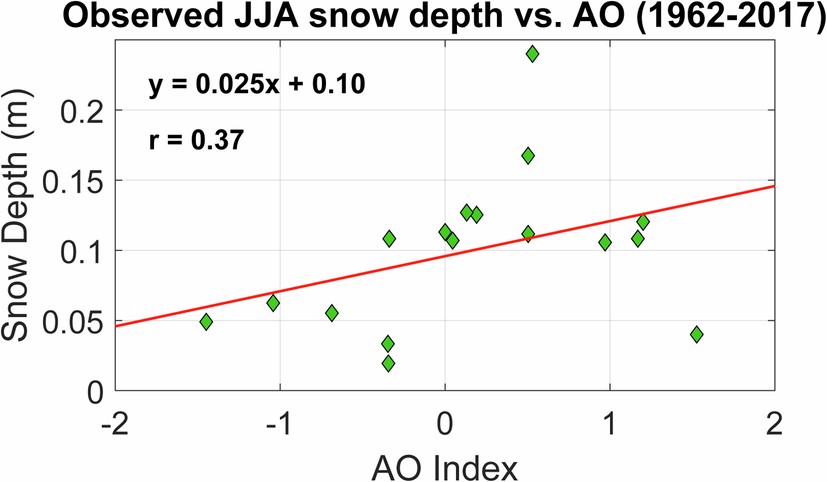

Extended Data Fig. 9: The linear fit between mean Arctic snow depths and the Arctic Oscillation index.

From: Summer snow on Arctic sea ice modulated by the Arctic Oscillation

Extended Data Fig. 9

The June-August average snow depths and Arctic Oscillation (AO) indices from the North Pole drifting ice stations and ice mass balance buoys for the 1962, 1970, and 1994–2017 period. The correlation is statistically significant to 86%.
