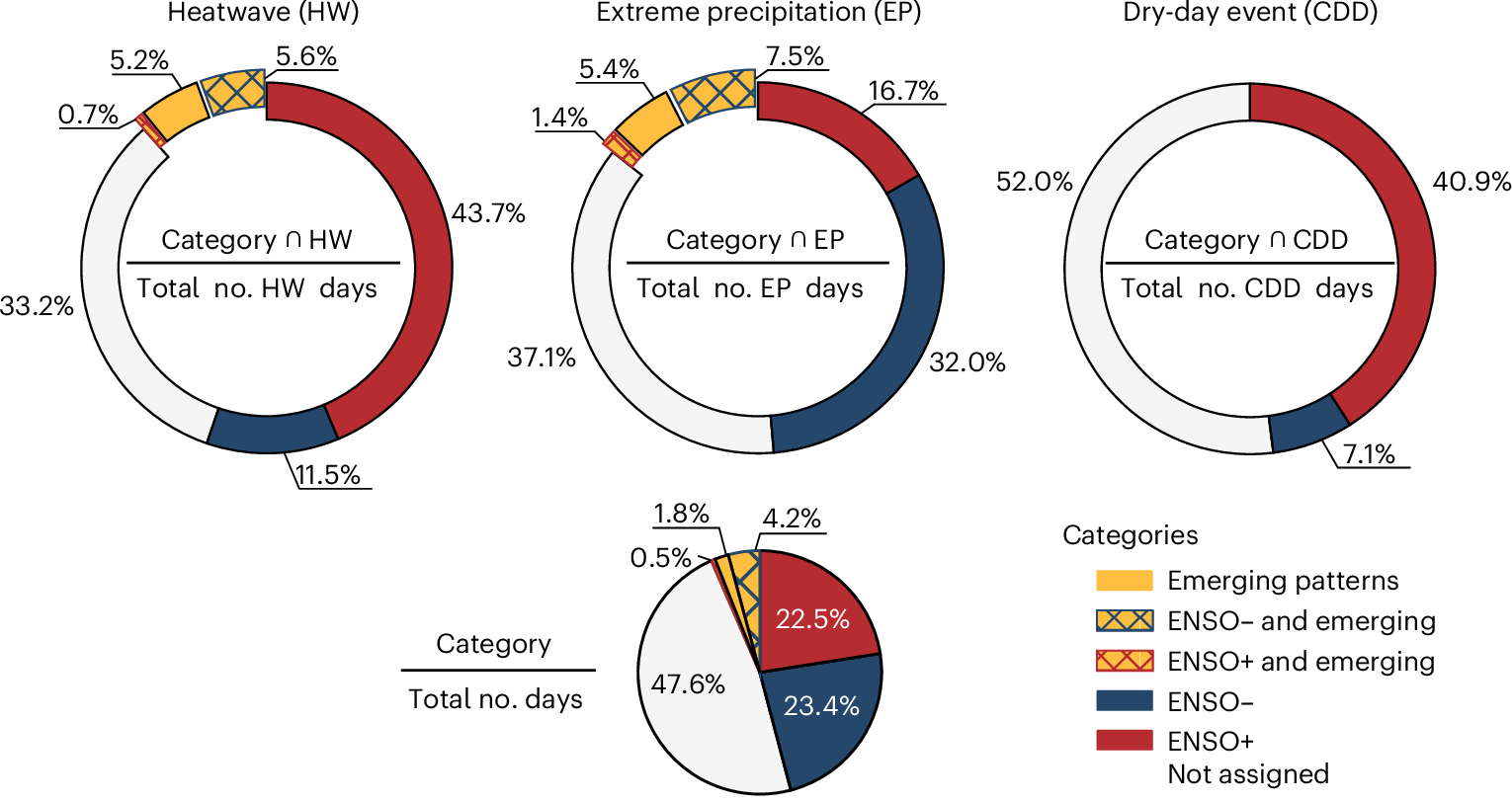

Fig. 4: Comparative analysis of extreme weather across ENSO phases and emerging patterns in DJF.
From: Indo-Pacific regional extremes aggravated by changes in tropical weather patterns
The percentages depicted in the upper pie charts are for heatwaves (left), extreme precipitation (centre) and consecutive dry days (right). More specifically, the upper pie charts show the percentages of extreme weather days for each category considered, namely ENSO positive (red), ENSO negative (blue), emerging patterns (yellow), emerging patterns and ENSO positive (yellow with red hatching), emerging patterns and ENSO negative (yellow with blue hatching) and none of the previous five categories (white), with respect to the total number of extreme weather days. The lower pie chart displays the percentages of days belonging to each of the six categories with respect to the total number of days in the period considered.
