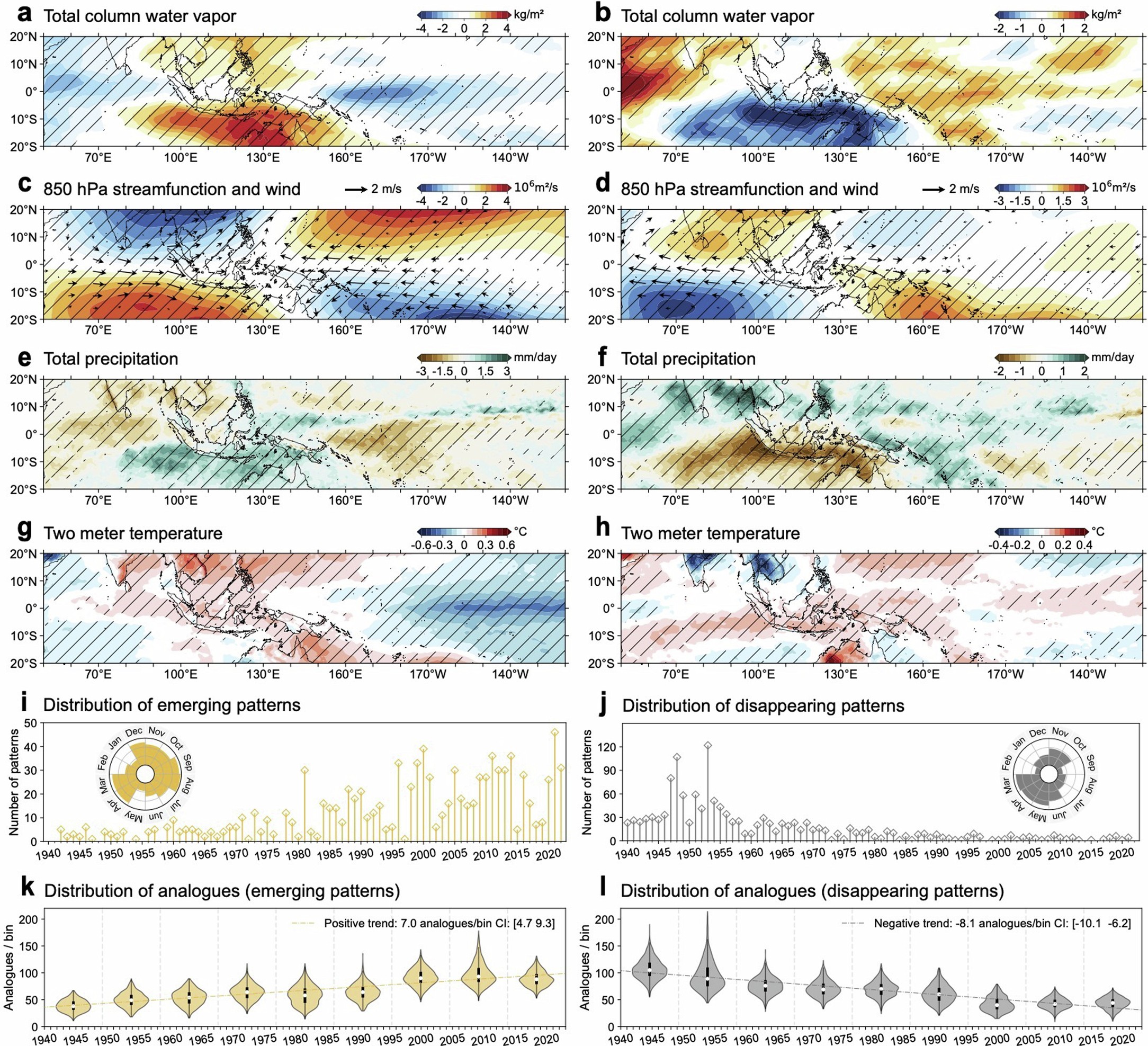

Extended Data Fig. 3: Composite anomalies (a–h), for patterns with significant occurrence trends (i,j), and associated analogues (k,l), using the 200hPa streamfunction as observable.
From: Indo-Pacific regional extremes aggravated by changes in tropical weather patterns
As in Fig. 1, but the observable used for occurrence trend analysis is the 200hPa streamfunction instead of TCWV. The ends of the boxes represent the 25th and 75th percentiles, with the whiskers extending up to 1.5 times the interquartile range beyond the box. The white dot in each box shows the medians (n=978 for emerging patterns, n=1323 for disappearing patterns).
