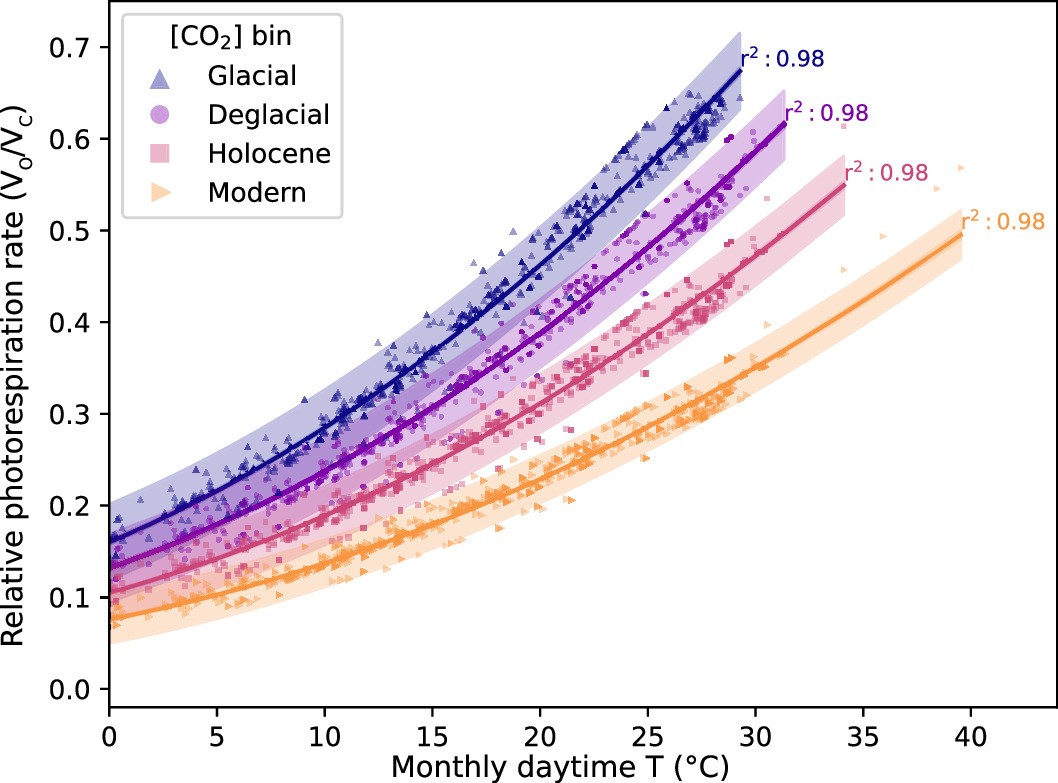

Extended Data Fig. 2: Modeled relative photorespiration rate (VO/VC) vs. monthly daytime growing temperature, grouped by [CO2]atm bin.
From: Isotopic evidence for elevated photorespiration during the last glacial period

Daytime temperatures were predicted from a downscaling of a time-evolving earth system model (see Methods) for every month in a typical year for every sample at the time of growth. Relative photorespiration rates predicted from [CO2]atm and daytime temperature along with other required climate variables (see Supplementary Information Fig. 2) using P-model v.1.051. Lines are 2nd-order polynomial fits to the data and associated ± 95% prediction intervals where data are binned by [CO2]. The strong correlations (r2 = 0.98 for all bins) justify the use of [CO2] bins to explain our data and suggest that other P-model inputs that vary naturally between sample sites (for example, vapor pressure deficit, light intensity, soil moisture) do not meaningfully impact relative photorespiration rates.
