Extended Data Fig. 8: Simulated results by obliquity minimum relative to obliquity maximum.
From: Zonally asymmetric changes in the Antarctic Circumpolar Current strength over the past million years

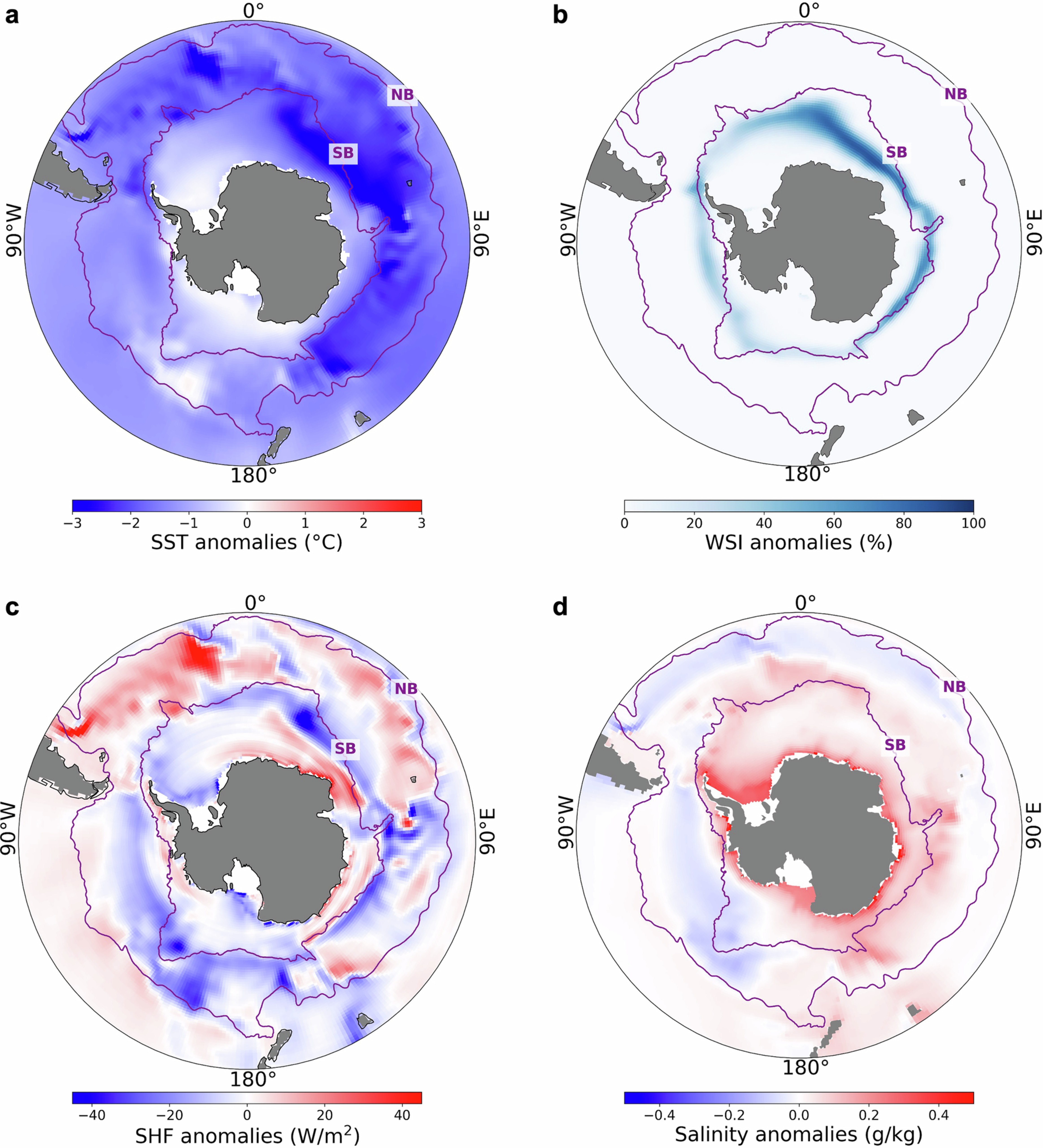

a, Sea surface temperature (SST) anomalies. b, Winter sea ice anomalies. c, Surface heat flux (SHF) anomalies. d, Integrated salinity anomalies. NB, Northern Boundary. SB, Southern Boundary. The oceanic boundaries (purple lines) are indicated after Park et al.10. Basemaps were based on simulation datasets from NCAR CESM50. Figure adapted from ref. 49 under a Creative Commons license CC BY 4.0.
