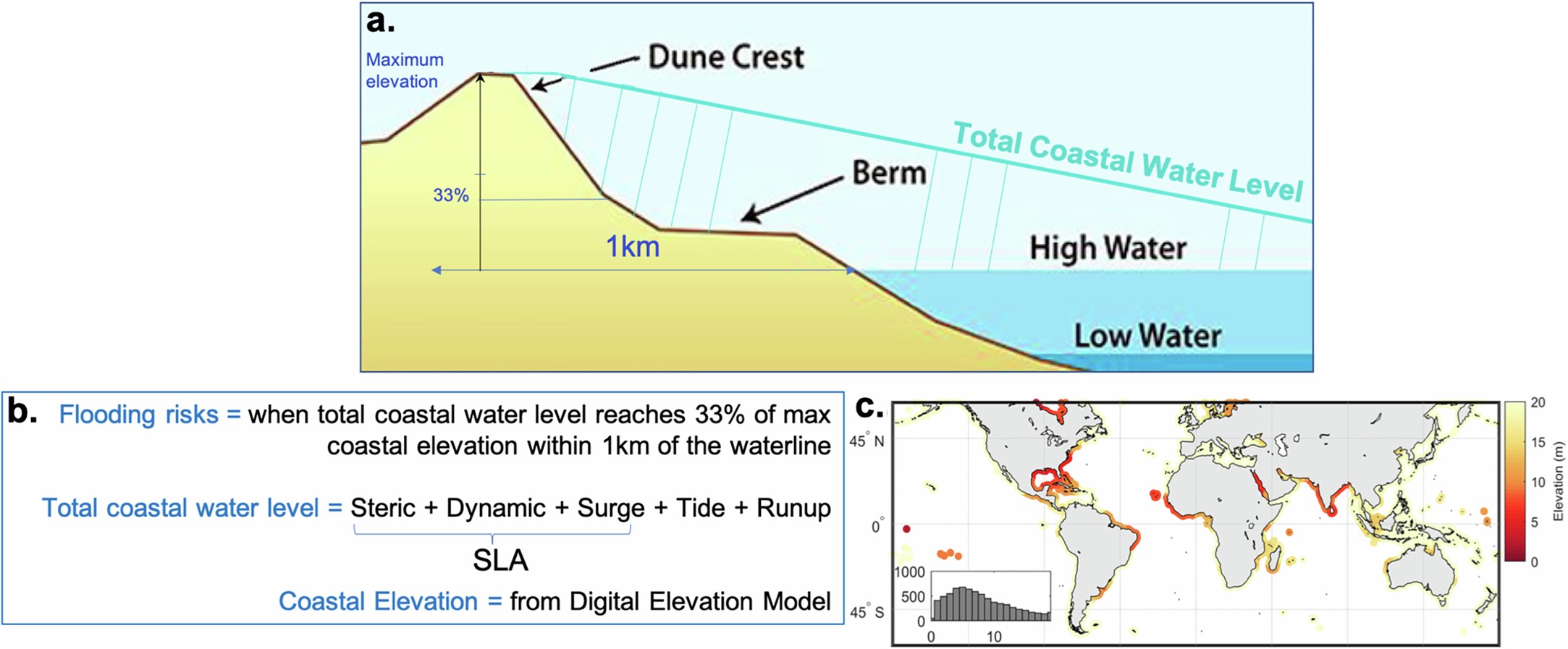

Extended Data Fig. 1: Methodology of extraction of coastal flood risk time series.
From: Climate mode interactions amplify coastal flood risks and their seasonal predictability
(a) Schematic of the methodology used to identify coastal flooding risks explained in (b): when the anomalous extreme CWL, calculated as when the monthly aggregated interannual anomalies of the hourly total coastal water level (the sum of SLA composed of the dynamic, steric and surge components, tide and wave-induced water level (Runup)) reach one-third (33%) of the maximum coastal elevation within the first kilometer shown in (c). Panels adapted with permission from: a, ref. 111, HAL; c, ref. 15, Springer Nature Limited.
