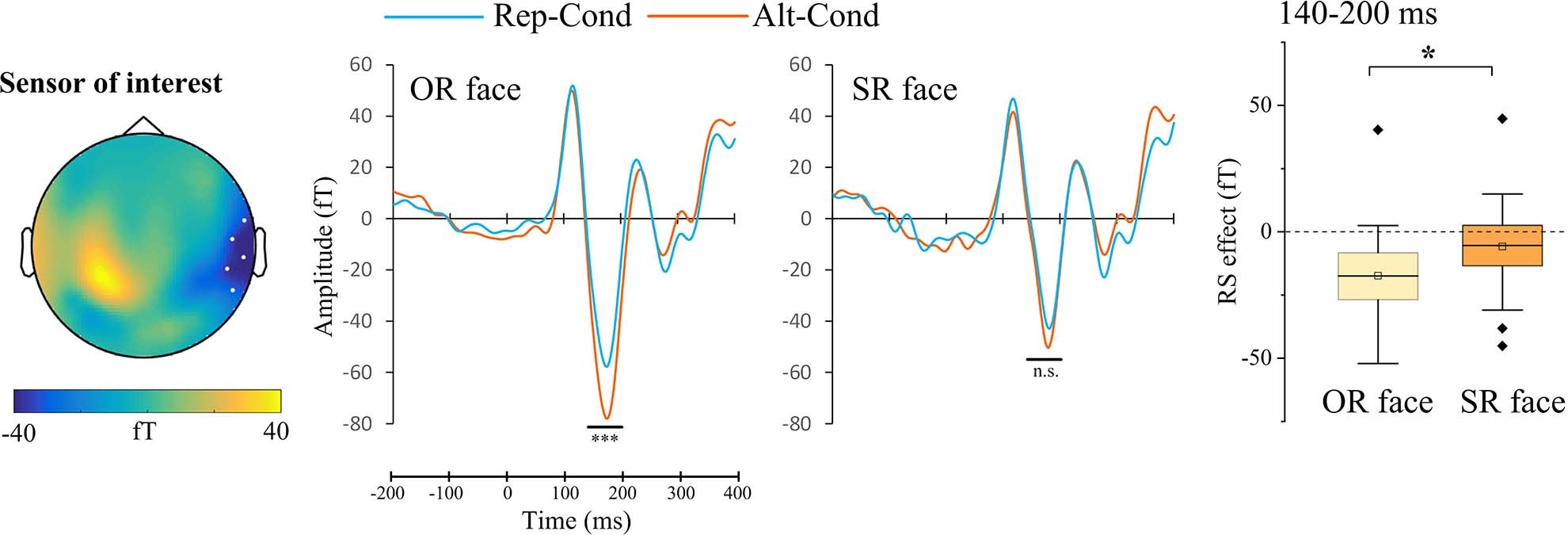

Extended Data Fig. 8
From: Neural dynamics of racial categorization predicts racial bias in face recognition and altruism
Results of MEG sensor-space signals in experiment 6. The left panel shows the magnetometer sensors that showed the strongest neural responses at 140–200 ms across all conditions (p <0.05, FDR corrected). The middle panel shows mean MEG responses over these sensors to OR-faces and SR-faces. The right bar charts illustrate the mean RS effects in sensor-space MEG signals (Alt-Cond > Rep-Cond) by showing quartiles (boxes), means (square inside boxes), medians (horizontal lines inside boxes), maximum and minimum excluding outliers(whiskers), and outliers (diamonds). ANOVAs of the mean sensor-space magnetic responses at 140–200 ms confirmed a larger RS effect for OR-(collapsing Black and White faces) than SR- (Asian) faces (N=26; F(1,25) = 6.663, p = 0.016, ηp = 0.210, 90% CI = 0.02, 0.41).
