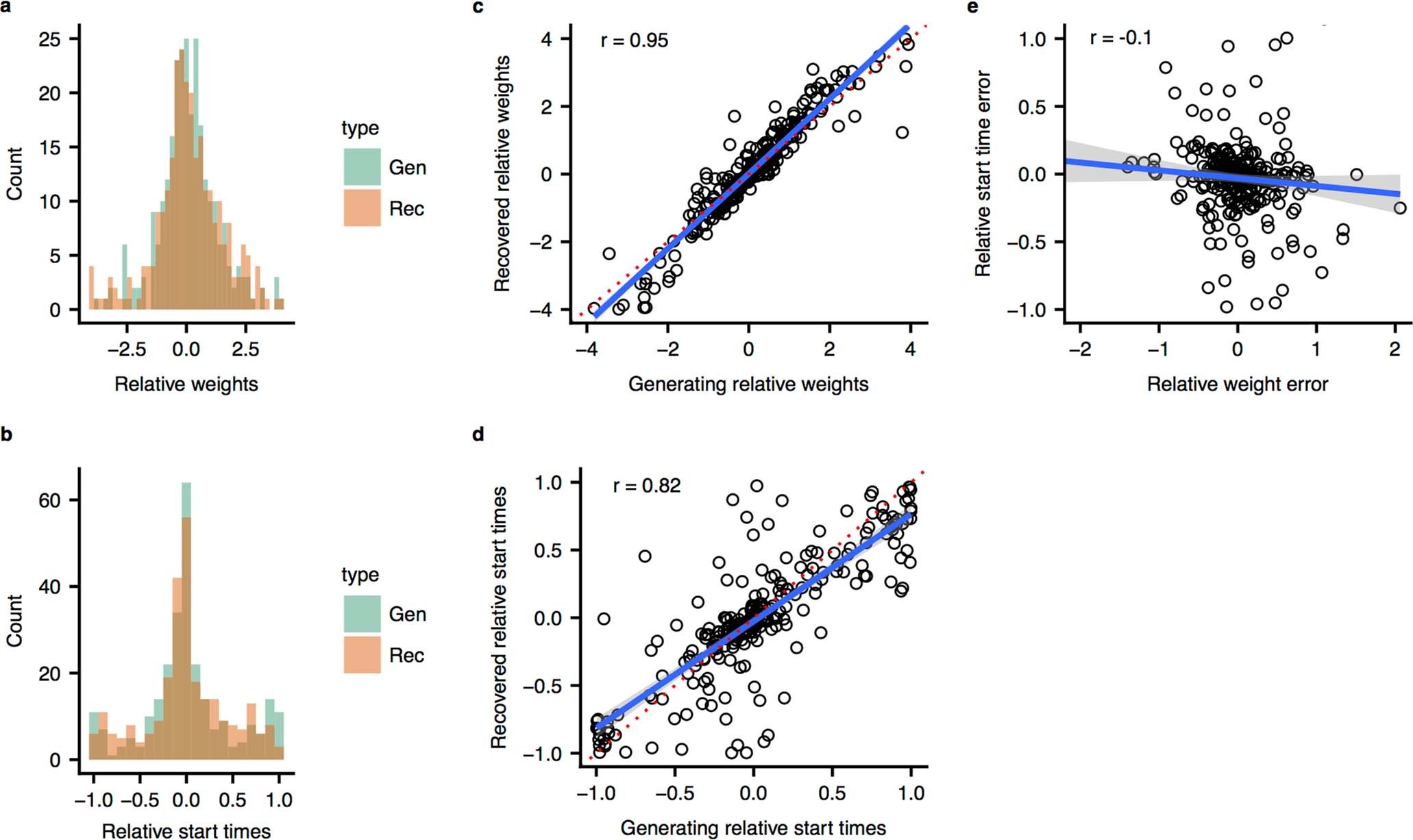

Extended Data Fig. 1: Parameter recovery for the time-varying DDM.
From: Dissociable mechanisms govern when and how strongly reward attributes affect decisions
Parameter recovery for the time-varying DDM with separate consideration onset times for tastiness and healthiness attributes. The plots in the first column show the distributions of all 272 generating and recovered relative weighting (a) and timing parameters (b). There was no significant difference between generating and recovered relative weighting (mean difference = 0.01, 95% HDI = [−0.36, 0.54], posterior probability of a difference > 0 = 0.662, Bayes factor = 0.140) or relative timing parameters (mean difference = −0.01, 95% HDI = [−0.03, 0.01], posterior probability of a difference > 0 = 0.105, Bayes factor = 0.024). The panels in the second column show the correlations between the generating and recovered relative weighting (c) and timing parameters (d). The red dotted line indicates the x = y identity line. Panel e) plots the error in relative weight recovery against the error in relative timing recovery. This plot shows that there is no significant correlation between the two types of error when fitting the model (r = − 0.1, 95% HDI = [−0.215; 0.018], posterior probability of observing a negative correlation = 0.95). The grey shaded area (panels c-e) signifies the 95% confidence interval.
