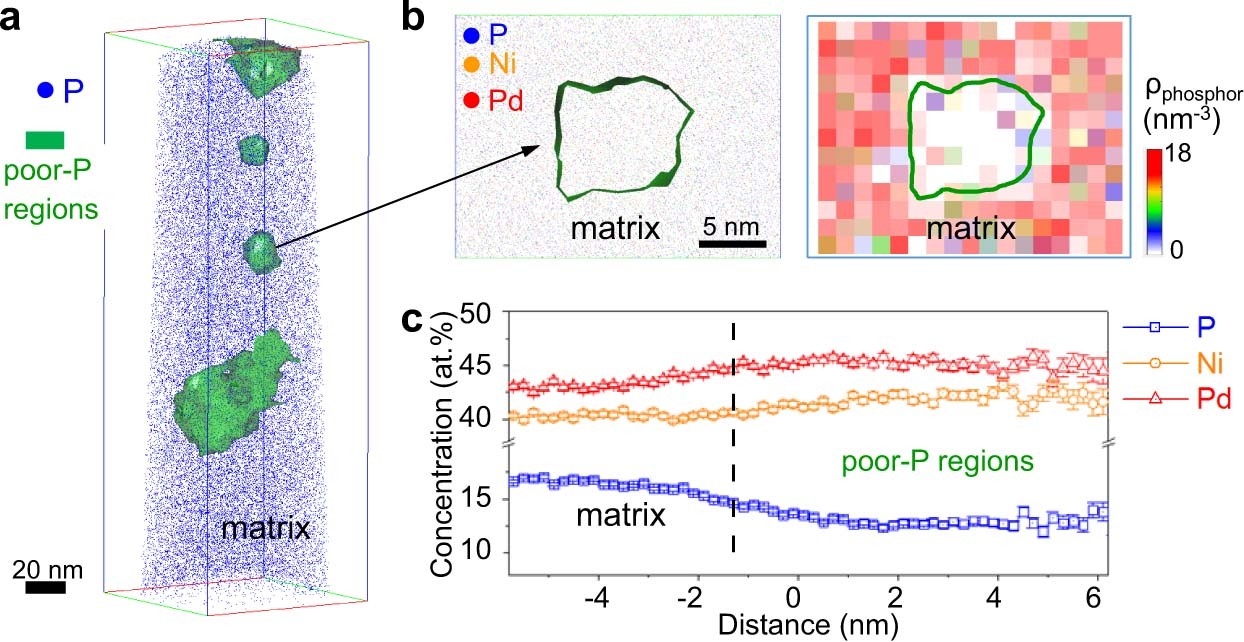

Extended Data Fig. 6: Determining the composition of the cube phase by atom probe tomography (APT).
From: A medium-range structure motif linking amorphous and crystalline states
a, Three-dimensional reconstructed P atom maps of the Pd-Ni-P MG with precipitates defined by iso-concentration surfaces at 5.1 nm−3 P (in green) using atom probe tomography. b, Two-dimensional elemental maps for the selected P-poor region (precipitate). c, One-dimensional concentration profiles through the center of the selected P-poor region (precipitate).
