Extended Data Fig. 9: Illustrating the characteristic of the cube phase by selected area electron diffraction (SAED).

From: A medium-range structure motif linking amorphous and crystalline states

Extended Data Fig. 9: Illustrating the characteristic of the cube phase by selected area electron diffraction (SAED).

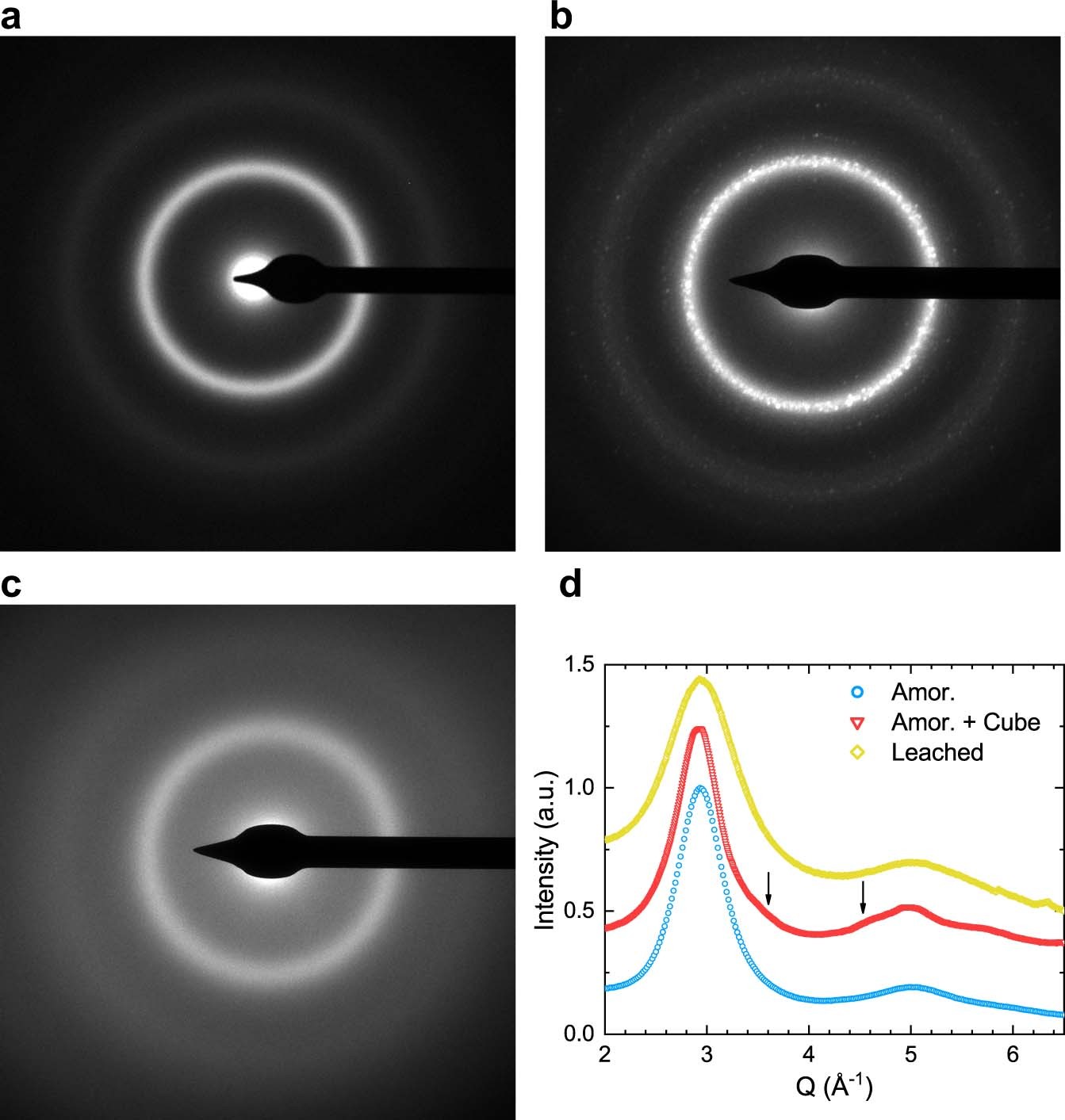

SAED patterns for: a as-cast, b cube phase precipitated and c leached Pd-Ni-P samples, respectively. d, Plots of diffraction intensity (I(Q)) versus scattering vector (Q) obtained by integrating the SAED pattern images. The arrows mark the reproduced shoulders in the Pd-Ni-P sample with the cube phase.
