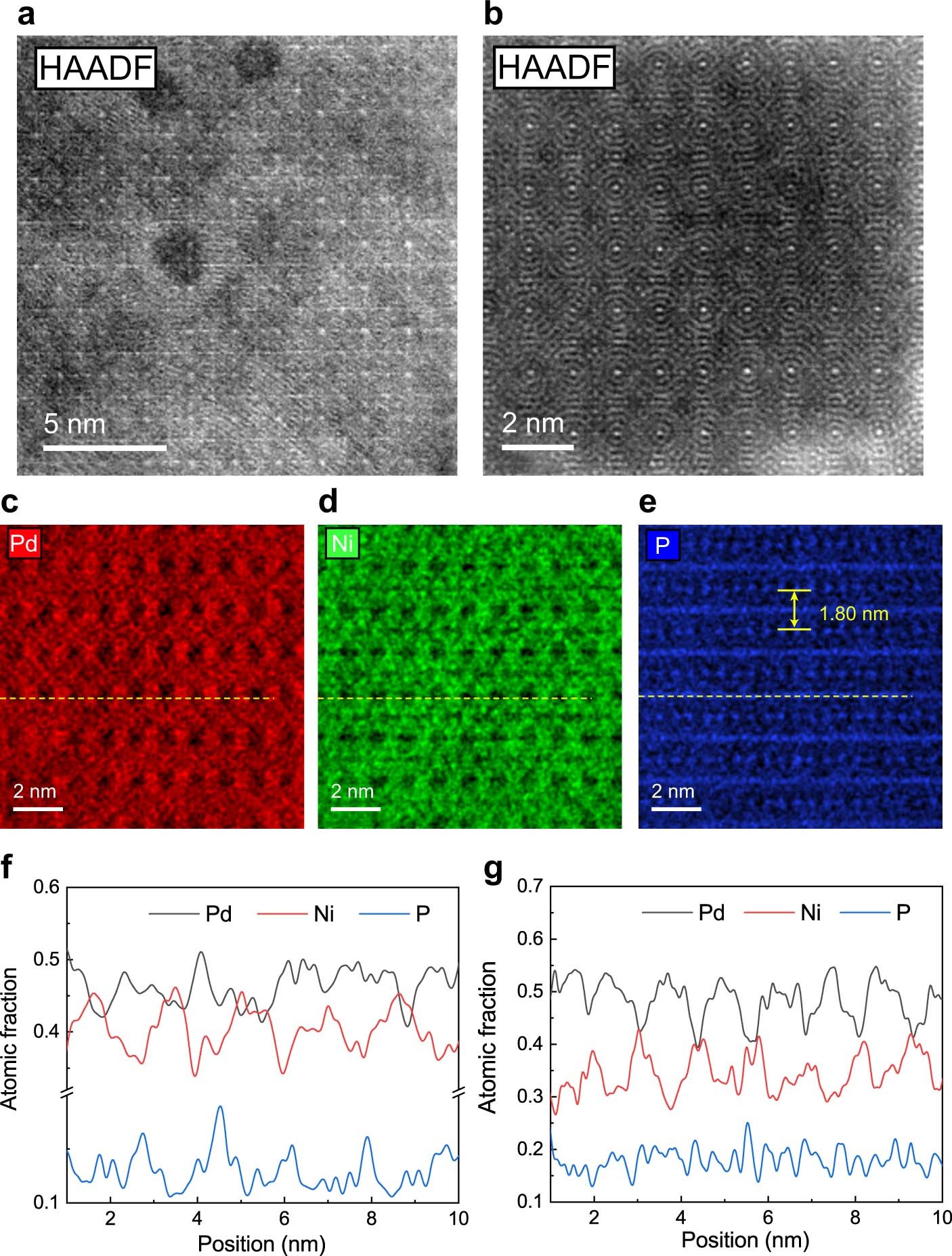

Extended Data Fig. 5: Determining the composition distribution of the cube phase by EDS-mapping.
From: A medium-range structure motif linking amorphous and crystalline states
a and b, HAADF image of the cube phase taken with the [100] and [110] zone axis. c-e, Corresponding EDS maps for Pd, Ni, and P taken with the [110] zone axis, respectively. f, Line profiles of an atomic fraction of individual elements (Pd, Ni, and P) along the dotted yellow line in the EDS maps in Fig. 2e–g. g, Line profiles of an atomic fraction of individual elements (Pd, Ni, and P) along the dotted yellow line in the EDS maps in Extended Data Fig. 5c–e.
