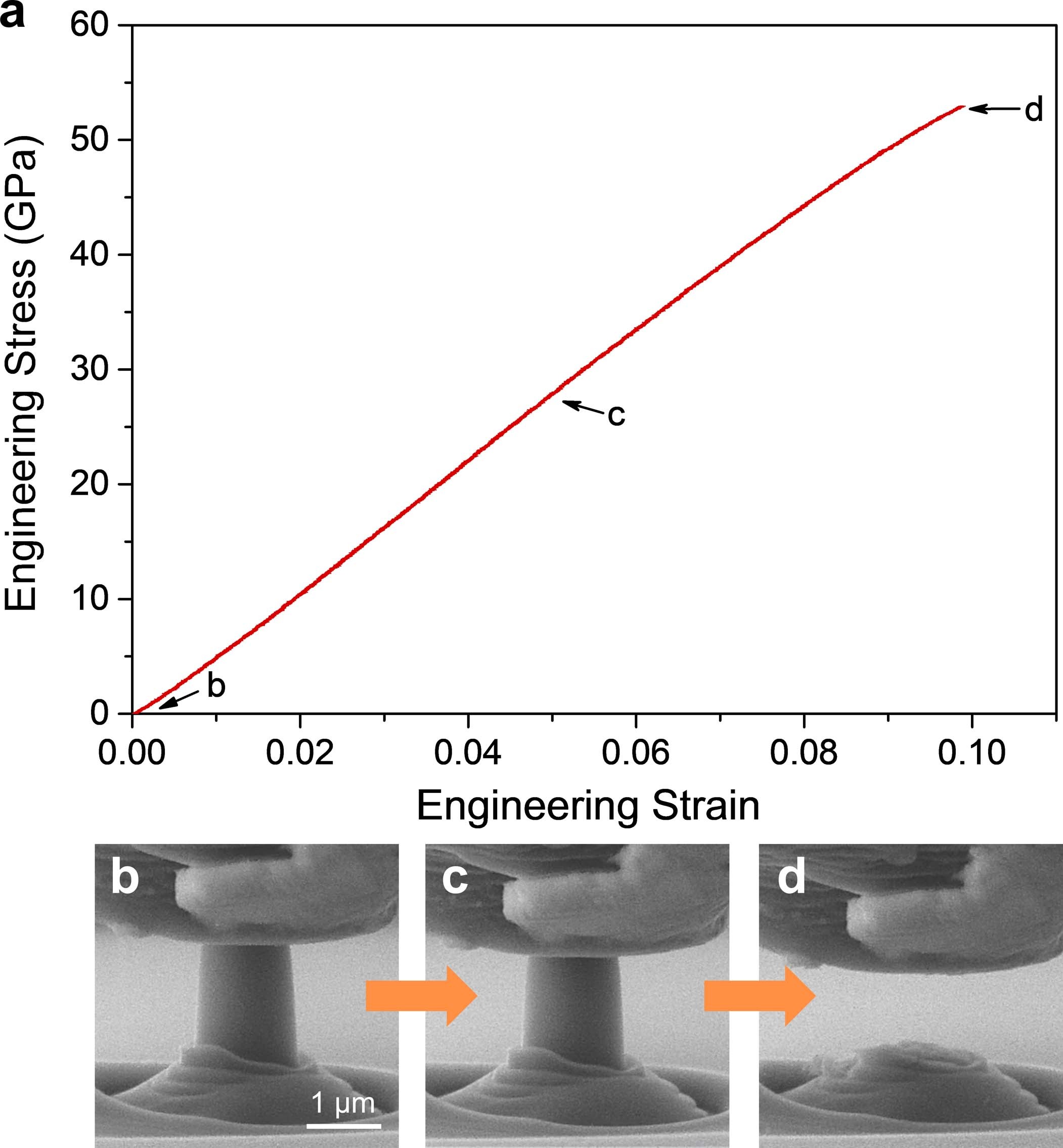

Extended Data Fig. 9: In-situ compression of Composite-3 micropillar with diameter of ~1.1 μm.

(a) Stress-strain curve of the tested sample. (b-d) Deformation snapshots of the micropillar during compression, corresponding to the b-d positions in stress-strain curve. The micropillar underwent catastrophic fracture at the maximum applied stress.
