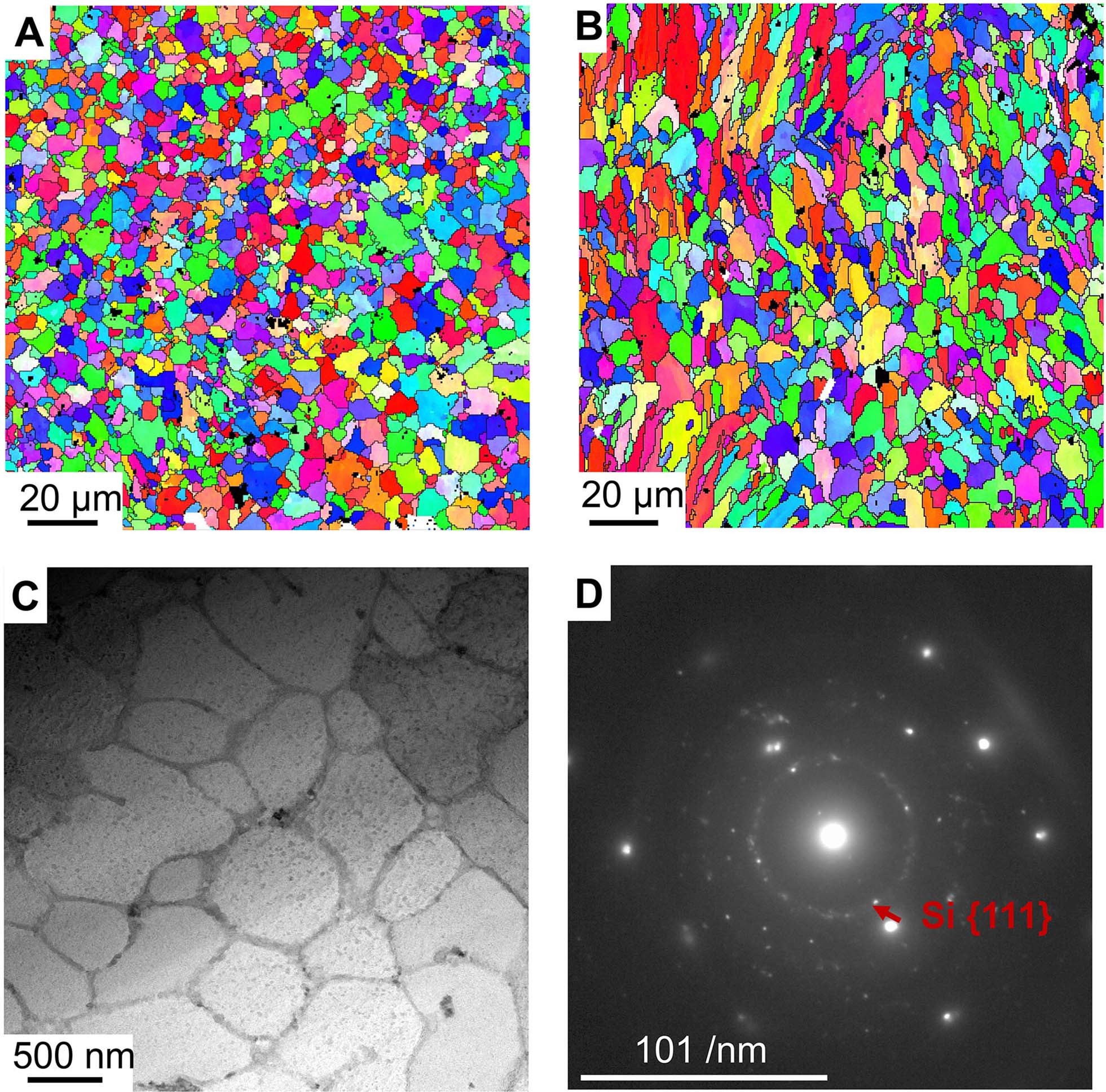

Extended Data Fig. 4: Microstructure characterisation of the NTD-Al sample manufactured by EOS M280.
From: Achieving ultrahigh fatigue resistance in AlSi10Mg alloy by additive manufacturing
(a) Grain morphology of the plane perpendicular to the printing direction. (b) Grain morphology of the plane parallel to the printing direction. (c) Network of solidification cellular structure with an average diameter of ~500 nm. (d) Selected-area electron diffraction pattern indicating that Si existed as nanosized phases with random orientations.
