Fig. 2: Field and temperature dependence of the MR in orthogonally twisted bilayer CrSBr. | Nature Materials

Fig. 2: Field and temperature dependence of the MR in orthogonally twisted bilayer CrSBr.

From: Multistep magnetization switching in orthogonally twisted ferromagnetic monolayers

Fig. 2

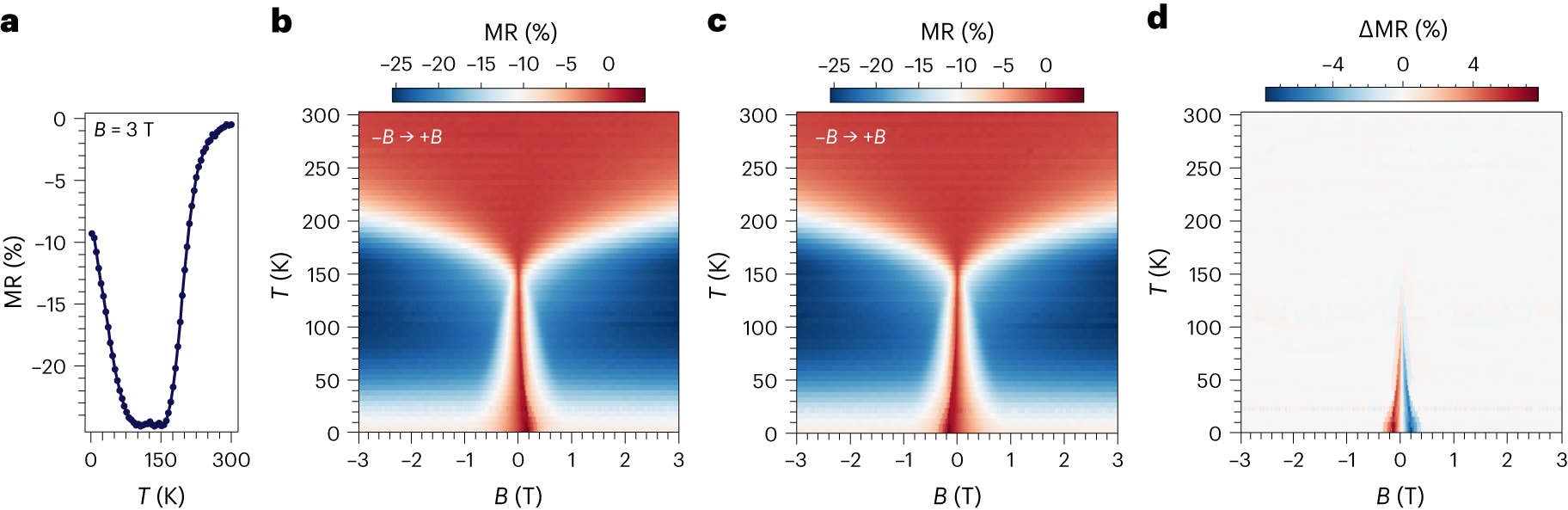

a, Temperature dependence of the MR at saturated fields (B = 3 T). b,c, Field and temperature dependence of the MR while sweeping from negative to positive (b) and from positive to negative (c) fields. d, Field and temperature dependence of ΔMR. MR is defined as MR (%) = 100[R(B) – R(0)]/R(0) and ΔMR = MR+B→−B − MR−B→+B; θ = φ = 0°.
