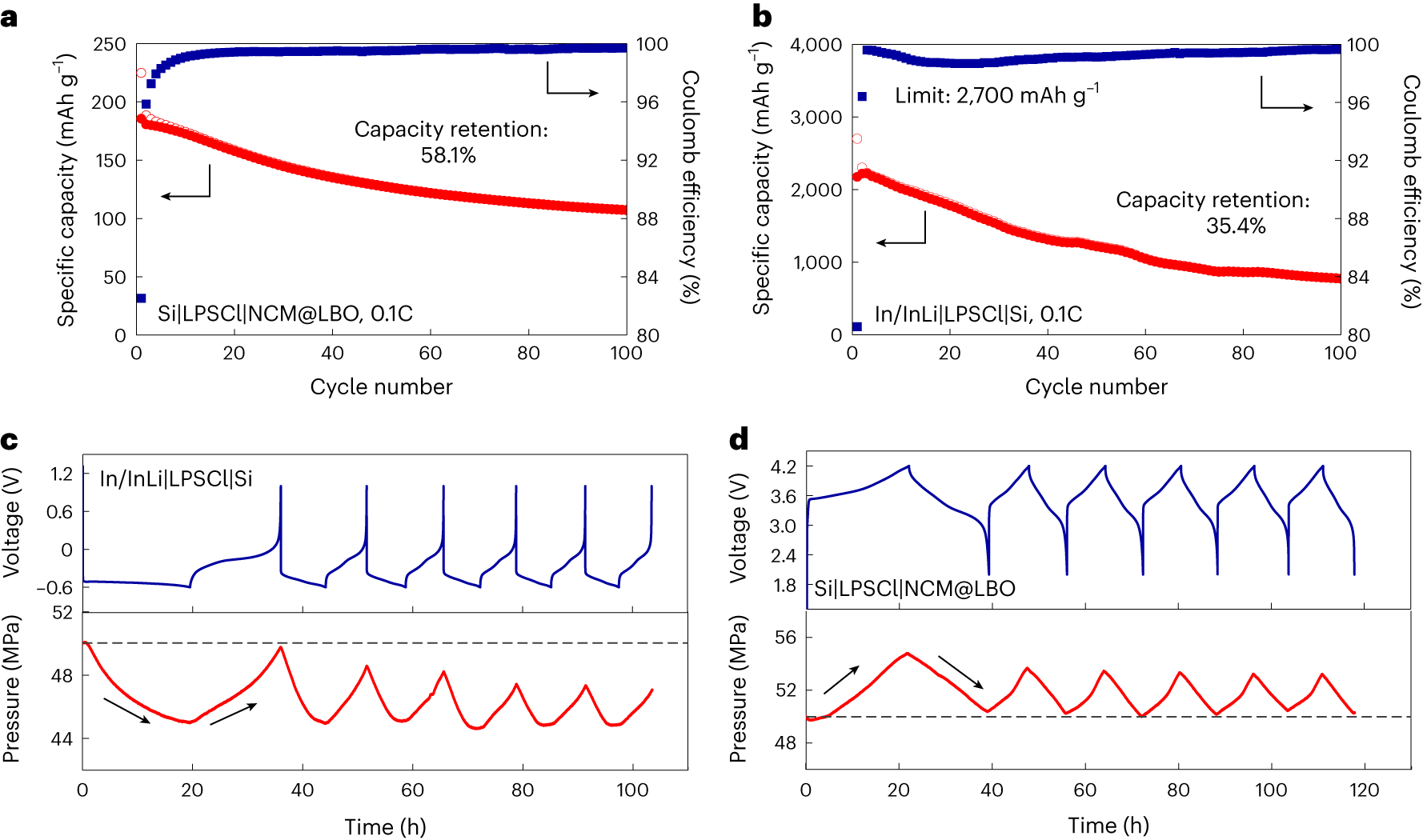

Fig. 5: SE-free Si anodes in Si|LPSCl|NCM@LBO full cells.
From: Chemo-mechanical failure mechanisms of the silicon anode in solid-state batteries
a,b, Cycling performance of the Si|LPSCl|NCM@LBO full cell (a) and the In/InLi|LPSCl|Si half-cell (b) with a cut specific capacity of 2,700 mAh g–1 at 0.1C. c,d, Galvanostatic cycling of the In/InLi|LPSCl|Si half-cell (c) and the Si|LPSCl|NCM@LBO full cell (d) along with the measured stack-pressure changes. Each dataset shows six cycles that were performed at 0.05C for the first cycle and 0.10C for the following cycles. The pressure at t = 0 is 50 MPa.
