Extended Data Fig. 8: Extracting the interlayer spacing of 1.07∘ tBLG from the spectral weight ratio.
From: Evolution of the flat band and the role of lattice relaxations in twisted bilayer graphene

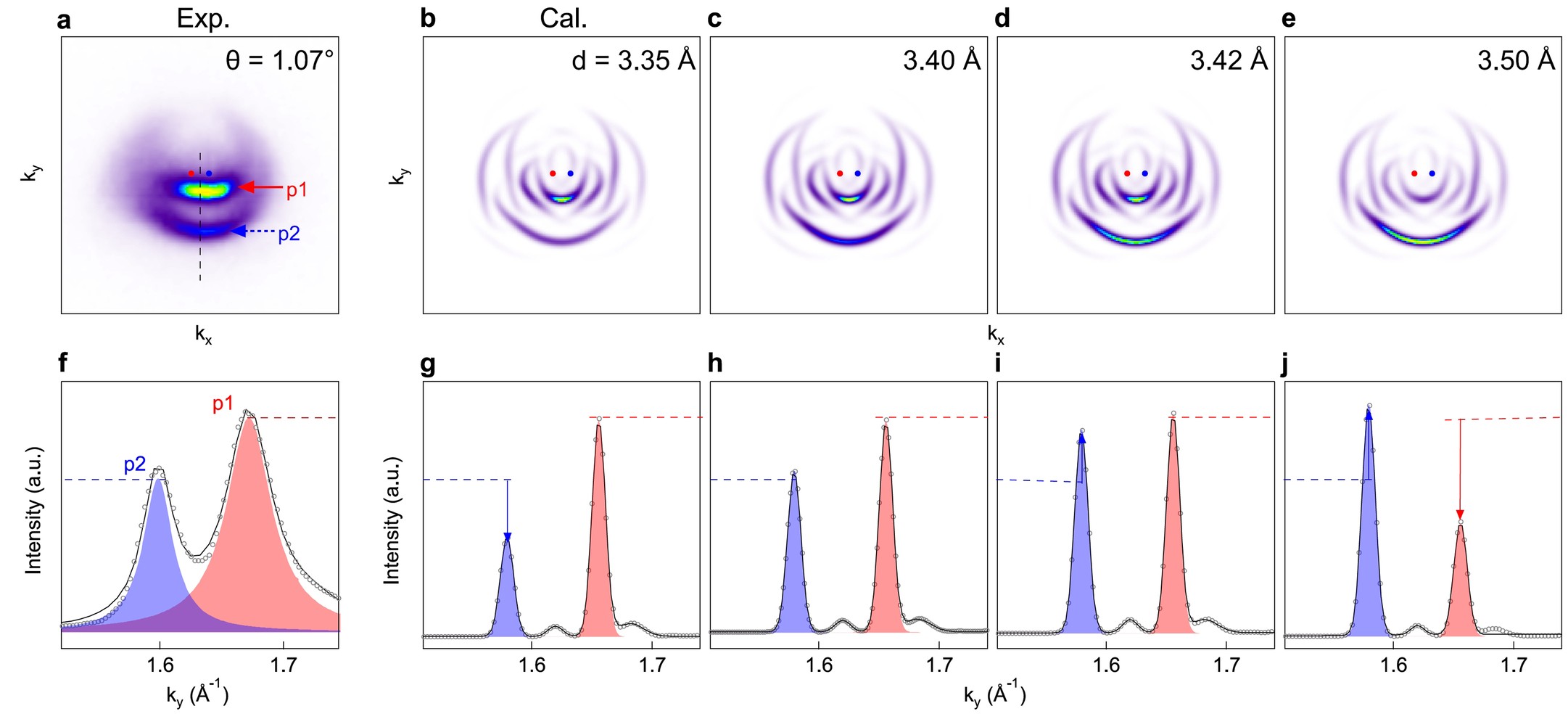

a, Energy contour measured at -0.6 eV in 1.07∘ tBLG. b-e Calculated energy contours by using interlayer spacing c = 3.35 Å, 3.40 Å, 3.42 Å and 3.50 Å, respectively. f-j, Extracted MDCs from the calculated dispersion images in a-e along the black dashed lines at -0.6 eV.
