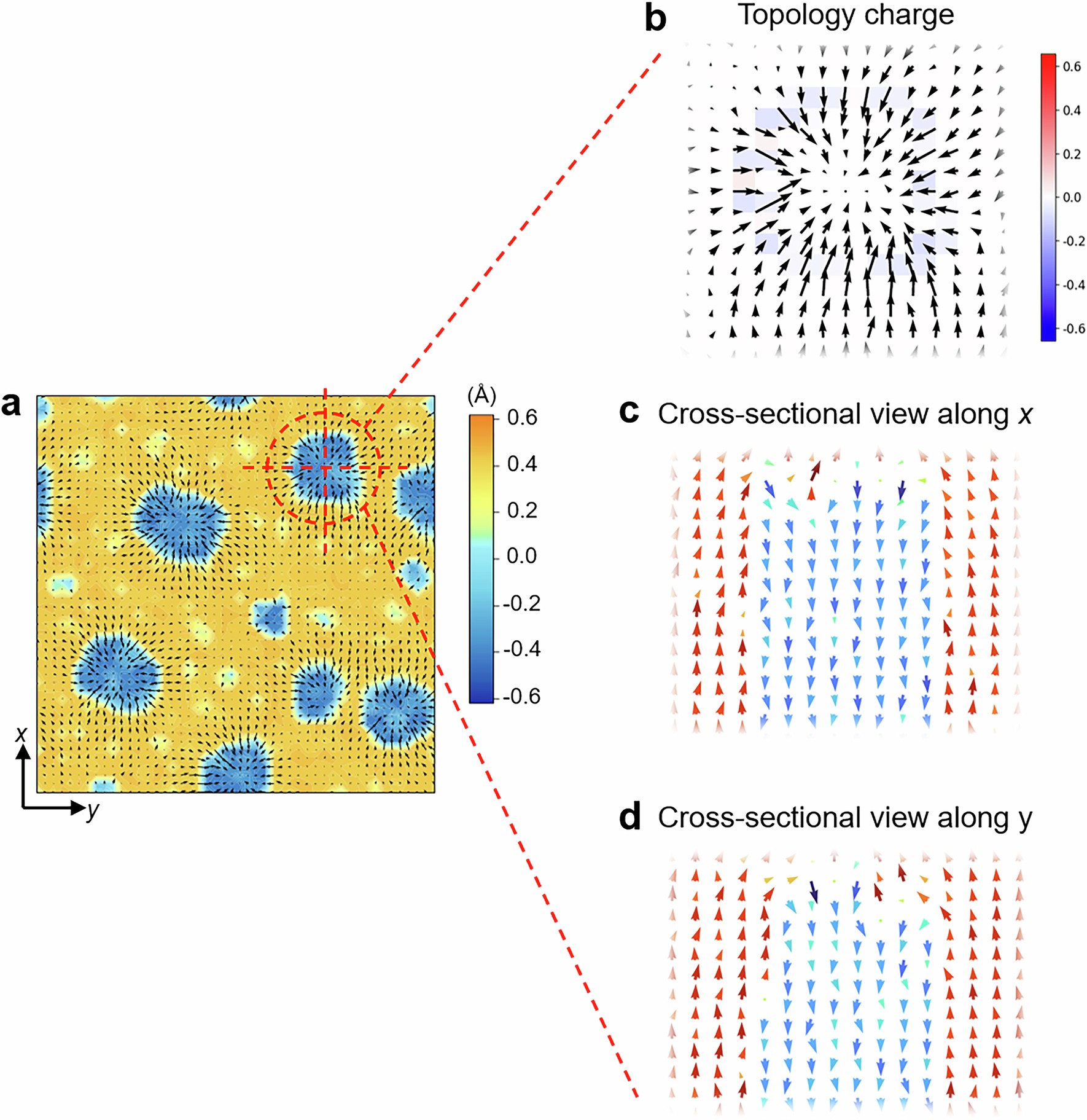

Extended Data Fig. 5: Simulated domain configuration of the PTSx=0.25 ceramic.
From: Skyrmion nanodomains in ferroelectric–antiferroelectric solid solutions
a, Simulated domain configuration in top view. b, Topology charge density. c, d, Cross-sectional views along x and y directions, respectively.
