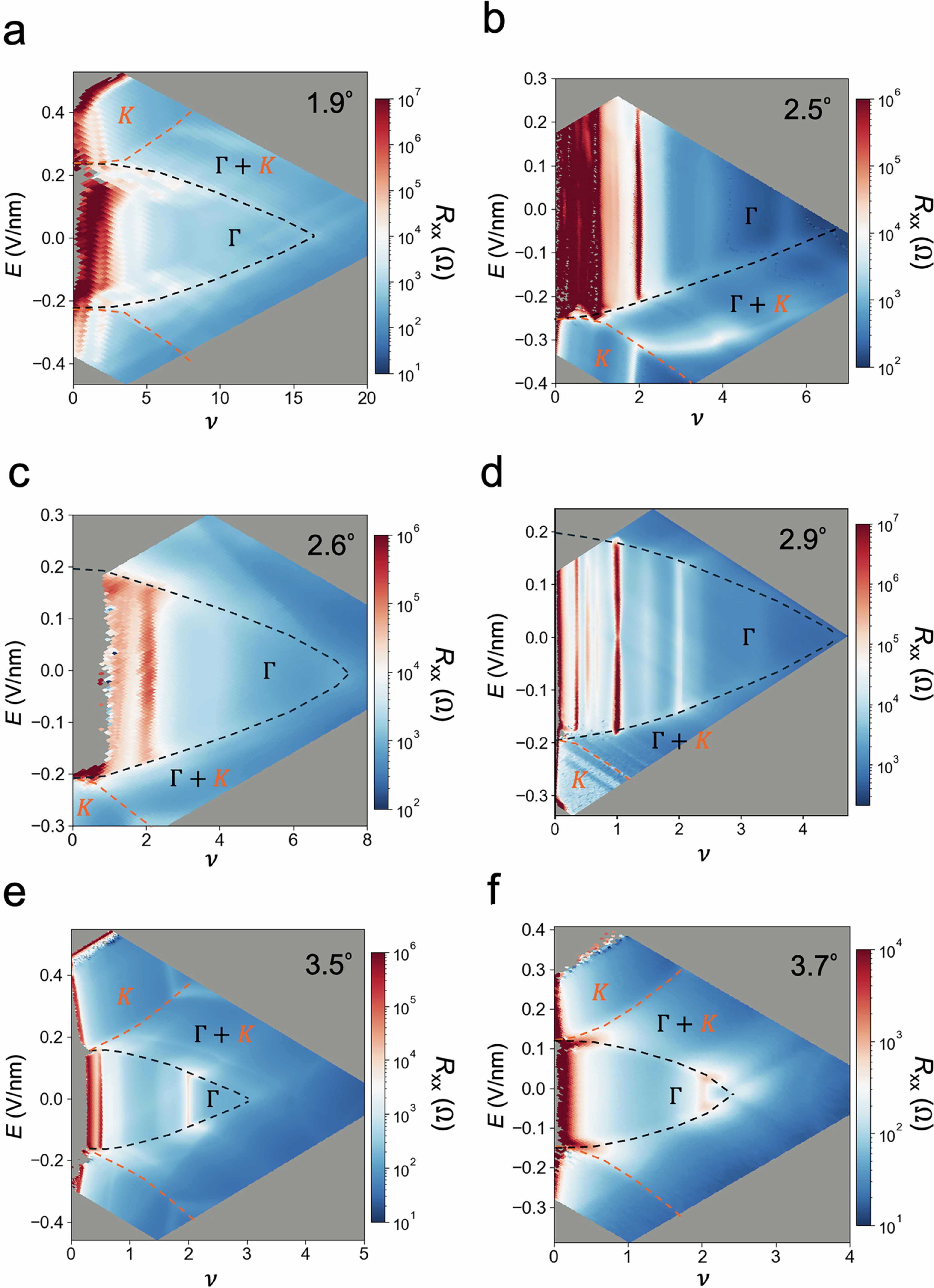

Extended Data Fig. 3: Transport properties of AB–BA WSe2 with different twist angles.
From: Relativistic Mott transition in twisted WSe2 tetralayers
Longitudinal resistance Rxx as a function of \(\nu\) and \(E\) at zero magnetic field in devices with twist angle 1.9° (a), 2.5° (b), 2.6° (c), 2.9° (d), 3.5° (e), and 3.7° (f). The orange and black dashed lines separate three distinct regions corresponding the \(K\), \(\Gamma +K\), and \(\Gamma\) valleys in WSe2.
