Extended Data Fig. 5: M45 aggregates co-localize with LC3BII.

From: Herpesviruses induce aggregation and selective autophagy of host signalling proteins NEMO and RIPK1 as an immune-evasion mechanism

Extended Data Fig. 5

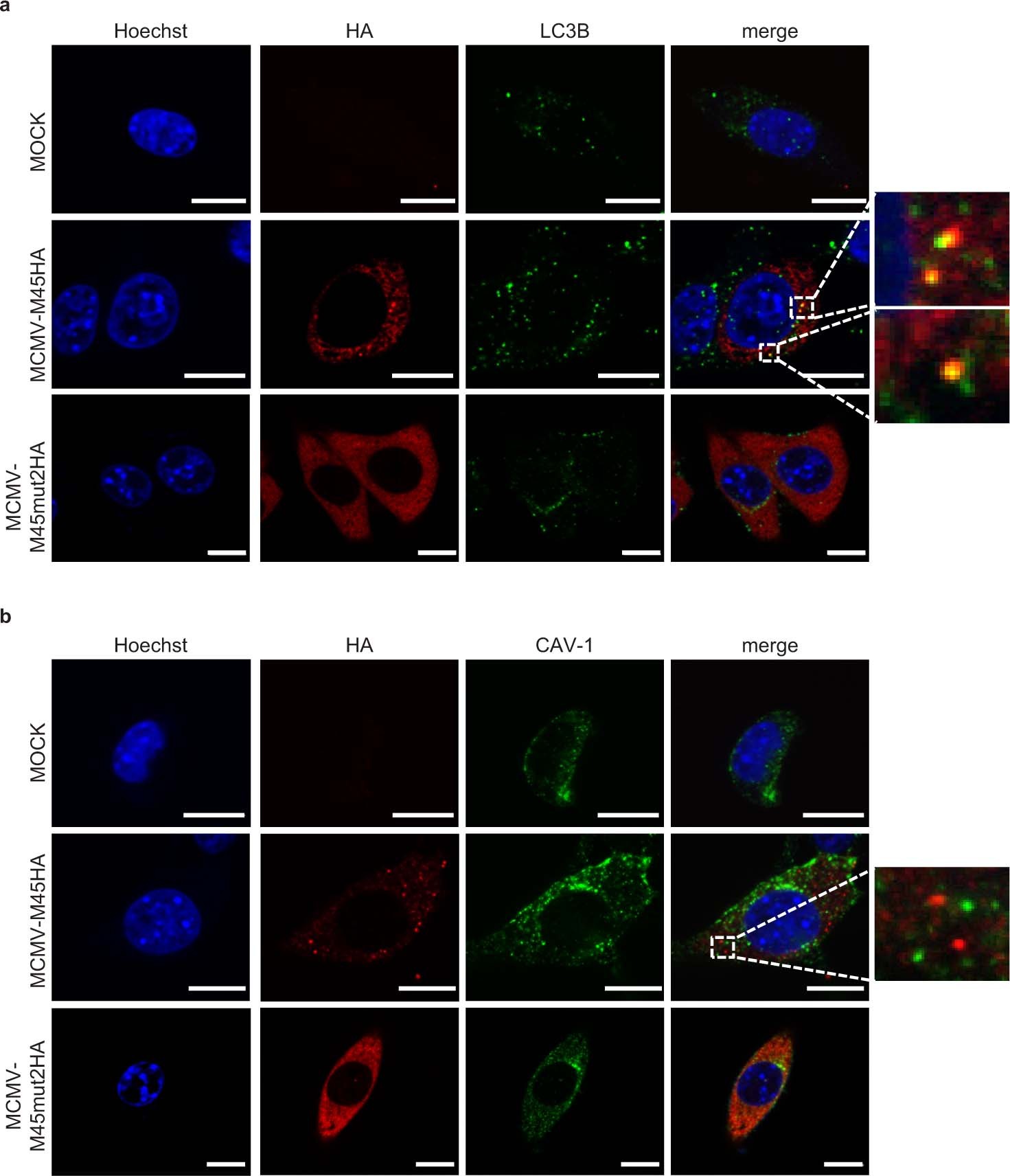

(a, b) NIH-3T3 infected with MCMV-M45HA or MCMV- M45mut2HA (MOI 3). 24 hpi cells were fixed and stained for HA (red) and either LC3BII (a) or Caveolin-1 (b) (green). Nuclei were stained with Hoechst 33342. Scale bar, 10 µm. These data (a-b) are representative of three biologically independent experiments.
