Extended Data Fig. 3: Comparison of picocyanobacterial abundances to abiotic factors.
From: Viruses affect picocyanobacterial abundance and biogeography in the North Pacific Ocean

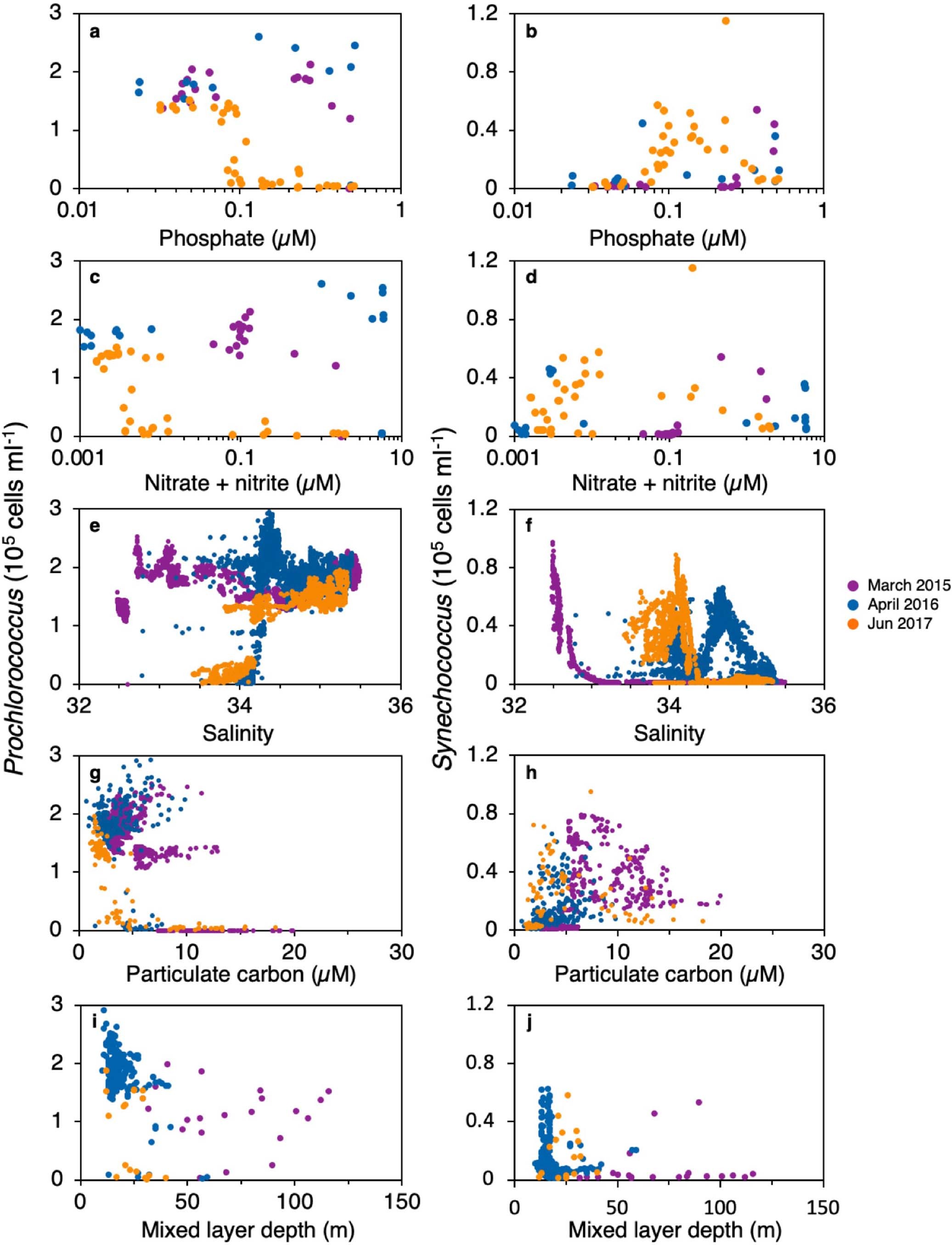

Prochlorococcus (left) and Synechococcus (right) abundances plotted against concentrations of phosphate (a,b), nitrate+nitrite (c,d), particulate carbon (e,f), salinity (g,h), and mixed layer depth (i,j) for the March 2015 (purple), April 2016 (blue), and June 2017 (orange) transects.
