Extended Data Fig. 5: UPEC is not sensitive to rotenone or antimycin A.

From: Uropathogenic Escherichia coli subverts mitochondrial metabolism to enable intracellular bacterial pathogenesis in urinary tract infection

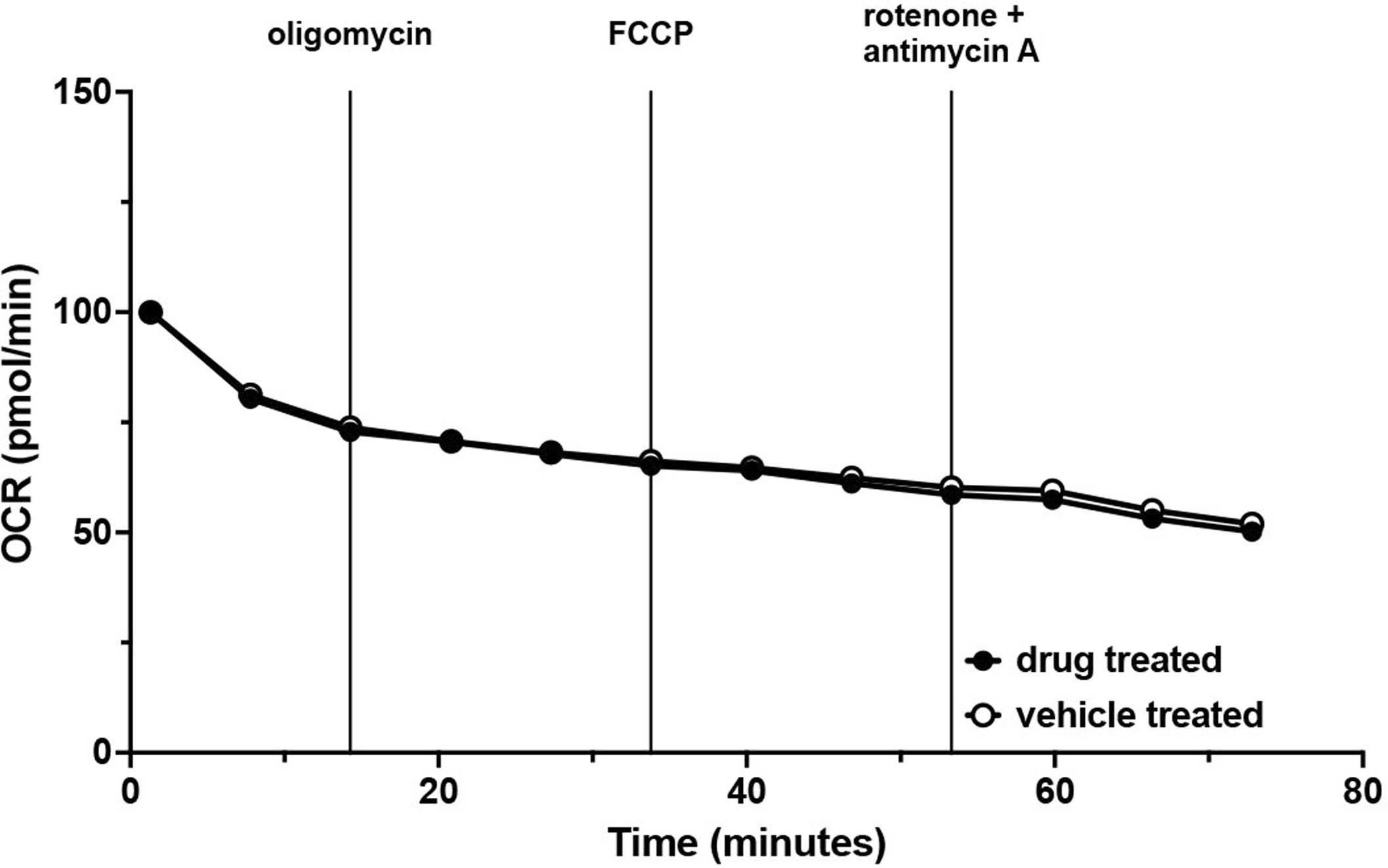

Extended Data Fig. 5: UPEC is not sensitive to rotenone or antimycin A.

OCR readings of wild-type UPEC treated with vehicle (open circles) or treated with oligomycin, FCCP, and rotenone/antimycin A (closed circles) presented as percent OCR of time = 0; mean ± SEM. Data was fit to a one phase decay model (R2 > 0.9 for both groups) and statistically analyzed by comparing k (p = 0.6402). Data is representative of five biological replicates, each with at least three technical replicates.

Source data
