Extended Data Fig. 1: Amino acid sequence differences between multiple sarbecoviruses.

From: SARS-CoV-2 Omicron variant emerged under immune selection

Extended Data Fig. 1: Amino acid sequence differences between multiple sarbecoviruses.

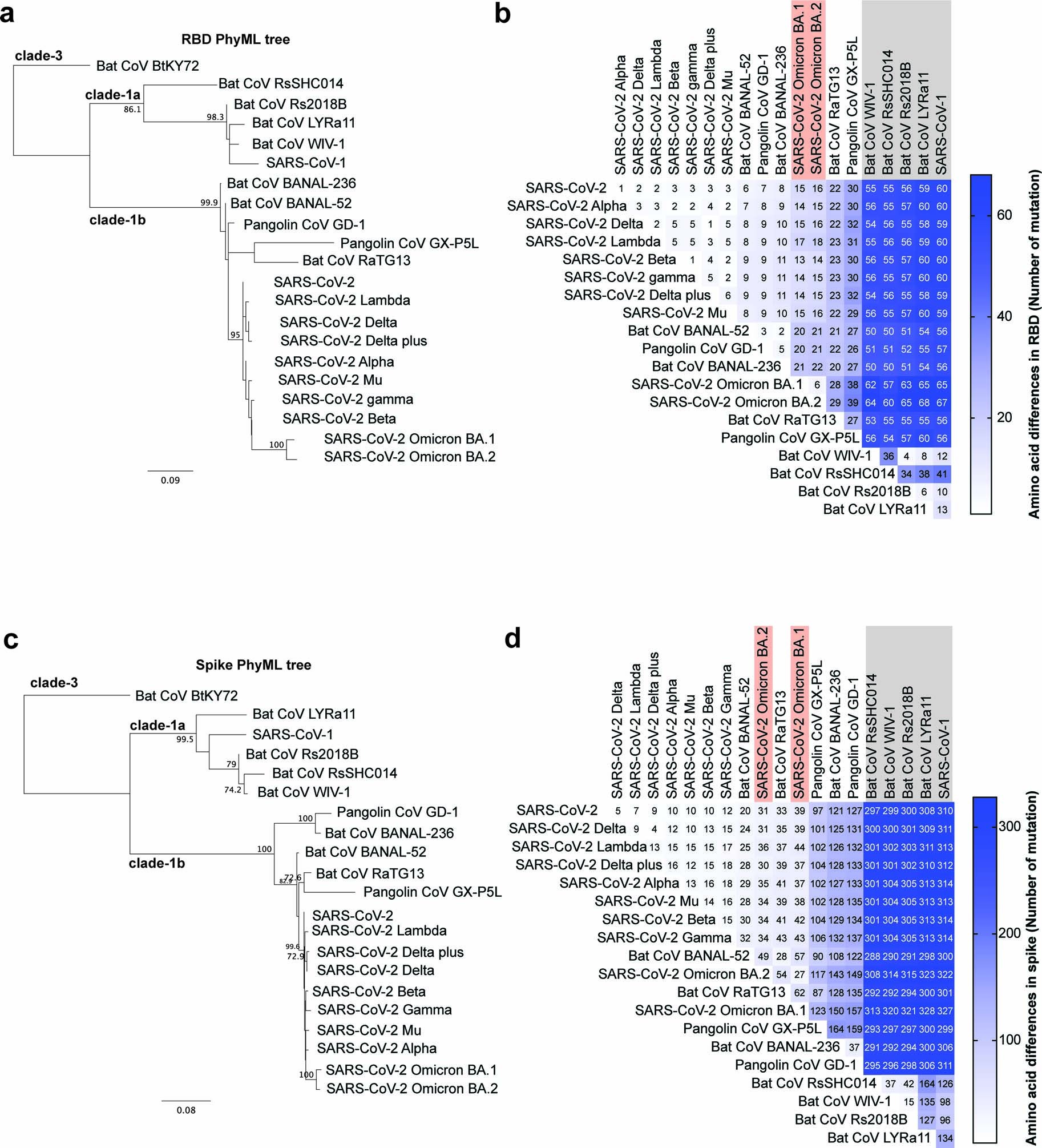

Phylogenetic trees based on the amino acid sequence of a, RBD and c, Spike were generated using PhyML with Blosum62 model with 1000 bootstrap replicates. Numbers at the branches are percentage bootstrap values for the associated nodes. Scale bar indicates number of substitutions per site. The heat-map for number of amino acid differences among 20 sarbecoviruses on b, RBD and d, Spike, generated from MAFFT alignment with Blosum62 model in Geneious Prime 2022.0.2.
