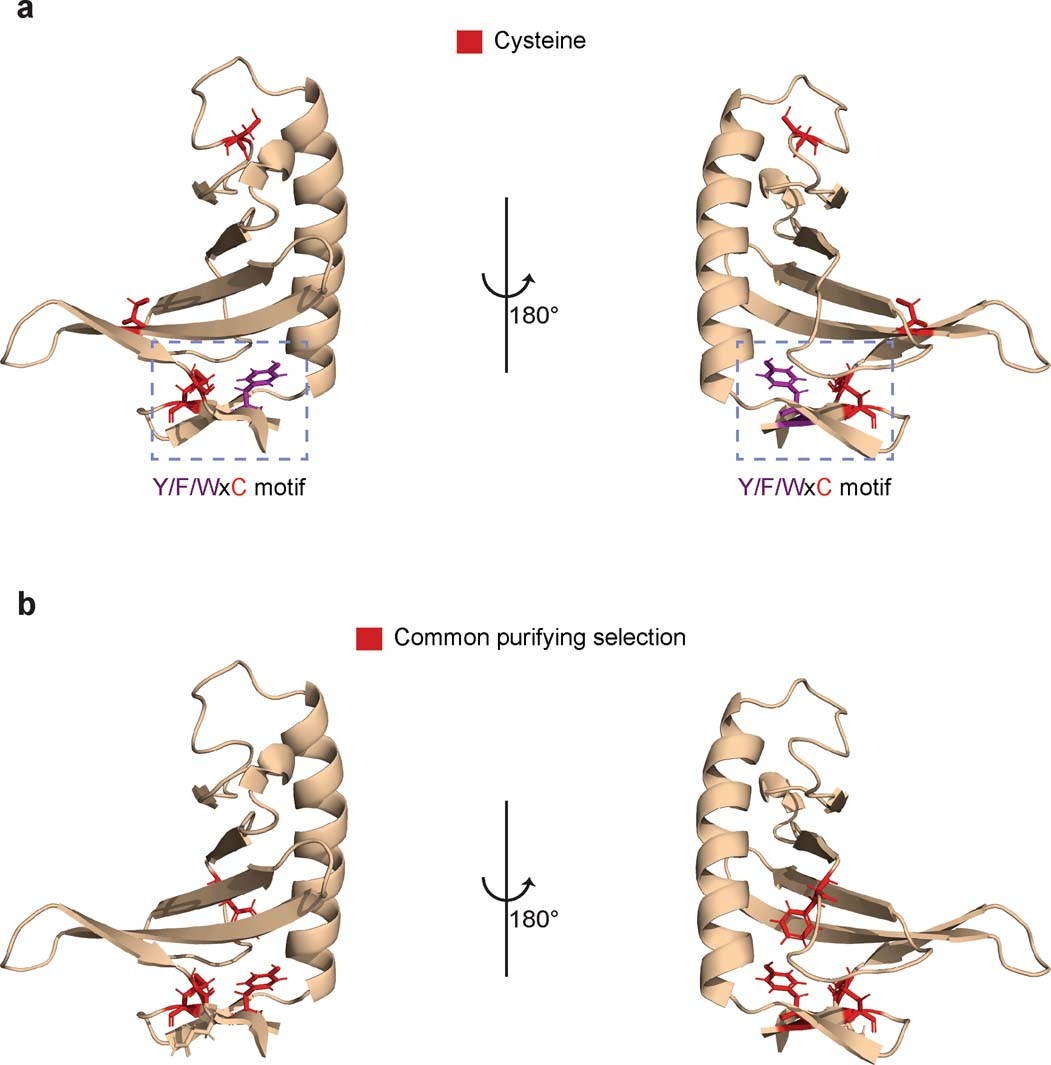

Extended Data Fig. 1: Common purifying selection on the RNAse-like effectors.
From: Prediction of effector protein structures from fungal phytopathogens enables evolutionary analyses
a, A predicted structure of the RNAse-like effector cluster (cluster 5) from Blumeria graminis f. sp. hordei. All cysteine residues are highlighted in red on the structure of Blugr2_3548 with the pTM score of 0.838. The location of the Y/F/WxC motif is indicated. b, Four residues were found to be commonly under purifying selection in at least 5 out of 8 sequence-related subclusters in cluster 5 (Supplementary Figure 10). Their corresponding positions are colored in red on the structure of Blugr2_3548: Y2, C4, F60 and C98. The numbering of the positions is based on the mature protein sequences.
