Extended Data Fig. 5: Correlation between gut bacterial MAGs and caecal lipids.

From: Genetic mapping of microbial and host traits reveals production of immunomodulatory lipids by Akkermansia muciniphila in the murine gut

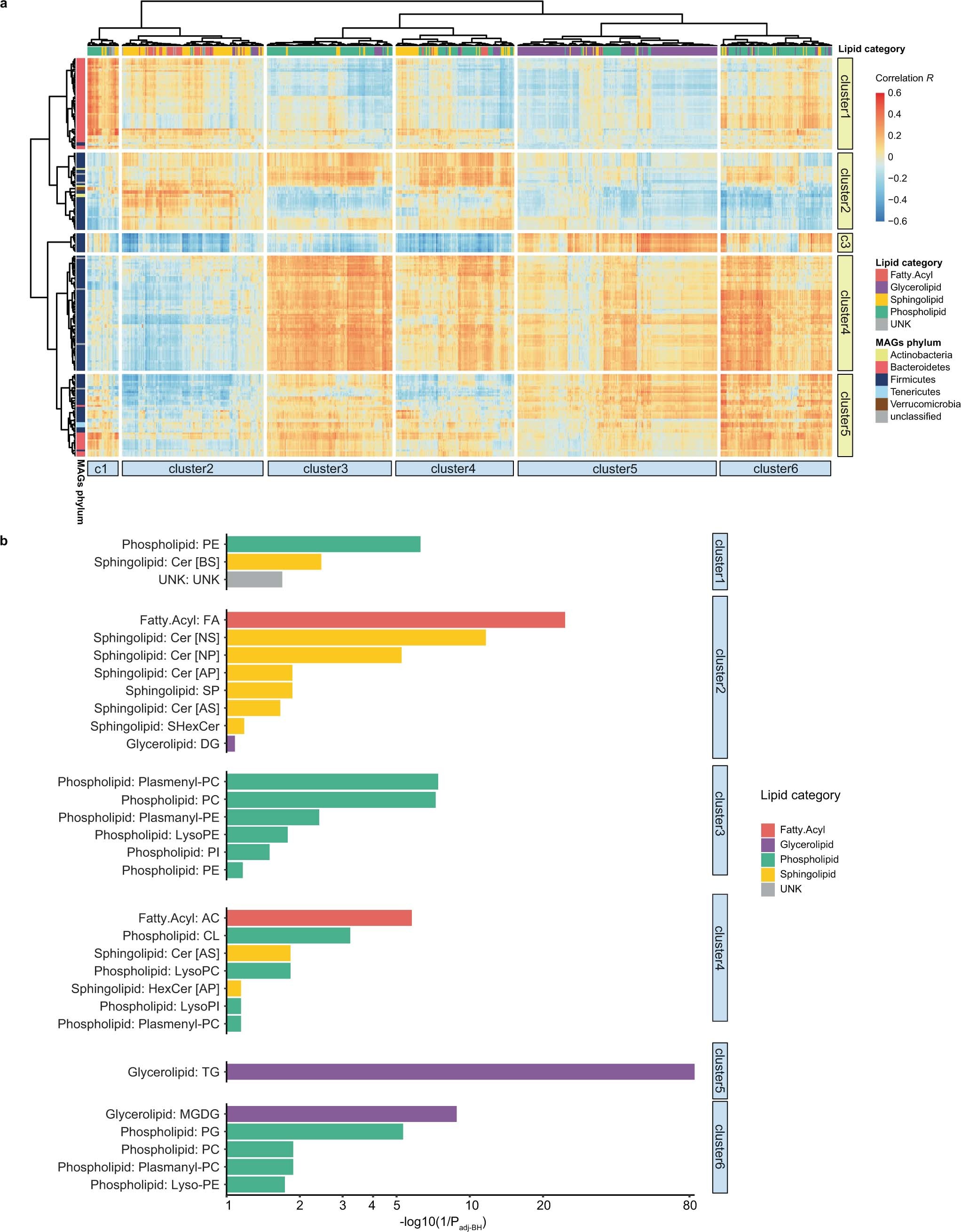

Extended Data Fig. 5

a, Heatmap showing two-sided Spearman correlation coefficients between the abundance of MAGs and caecal lipid levels across DO mice. Bacterial MAGs were clustered into five groups whereas caecal lipids were clustered into six groups. b, Enrichment of the lipid classes for each caecal lipid clusters. Fisher’s exact test was used and Benjamini-Hochberg for multiple tests correction.

Source data
