Fig. 6: eQTL for distal small intestine (ileum) genes that co-map with A. muciniphila and caecal OL at Chromosome 1.

From: Genetic mapping of microbial and host traits reveals production of immunomodulatory lipids by Akkermansia muciniphila in the murine gut

Fig. 6

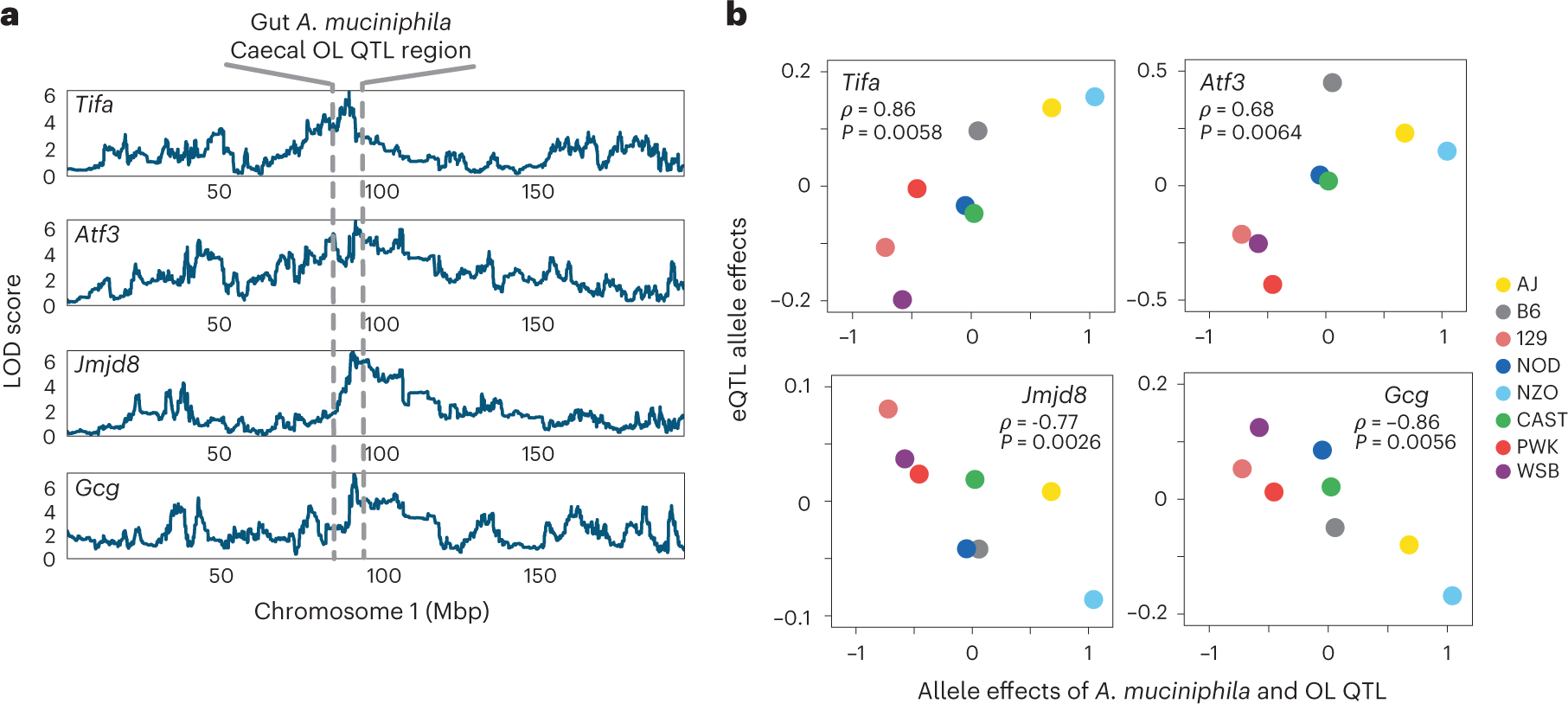

a, QTL of A. muciniphila, caecal OL and eQTL for Tifa, Atf3, Jmjd8 and Gcg co-map at Chr1: 90–95 Mbp. LOD score in y axis represents significance of QTL for each trait. b, Spearman correlation of allele effects between Tifa, Atf3, Jmjd8 and Gcg gene eQTL and A. muciniphila/OL QTL.
